How to Fix Windows Boot Error 0xc000000d: A Comprehensive Guide

Error 0xc000000d is a critical Windows boot error that can leave users frustrated and unable to access their systems. This comprehensive guide will walk you through understanding the error, its causes, and step-by-step solutions to get your computer up and running again.

Introduction: Understanding Error 0xc000000d

Error 0xc000000d typically occurs during the Windows boot process and is associated with issues in the Boot Configuration Data (BCD). The BCD is a crucial component that contains information about how Windows should start. When this data becomes corrupted or missing, Windows cannot initiate the boot sequence properly, resulting in the 0xc000000d error.

Common causes of this error include:

• Incorrect boot configuration settings
• Hard drive failures or corruption
• Sudden power outages during system updates
• Incomplete Windows installations or updates

The impact of this error is significant, as it prevents the system from booting, potentially leading to data loss and productivity disruptions. In many cases, users may encounter a message stating “Your PC needs to be repaired”, which is a clear indicator of a serious boot issue.

Understanding the Boot Configuration Data (BCD)

The Boot Configuration Data (BCD) is a firmware-independent database for boot-time configuration data. It replaced the older BOOT.INI file in Windows Vista and later versions. The BCD stores information about the Windows boot loader and is essential for the following:

1. Determining which operating system to load
2. Specifying boot parameters for each OS
3. Loading device drivers necessary for booting

When the BCD becomes corrupted or misses crucial information, Windows cannot proceed with the boot process, triggering errors like 0xc000000d.

Common Causes of Error 0xc000000d

1. Incorrect Boot Configuration: Changes in system settings, particularly those affecting the boot sequence, can lead to this error.
2. Failed or Corrupted Hard Drive: Physical damage or logical errors on the hard drive can corrupt the BCD.
3. Power Outages: Sudden power loss during system updates or while Windows is writing to the BCD can cause corruption.
4. Incomplete Windows Updates: Interruptions during Windows updates can leave the BCD in an inconsistent state. This can sometimes result in errors like Windows Update Error 8024402F.
5. Malware Infections: Some malware may target boot sectors, potentially damaging the BCD.

Understanding these causes is crucial for both resolving the current issue and preventing future occurrences.

Symptoms and Indicators

The most common symptoms of the 0xc000000d error include:

• A blue screen displaying the error code

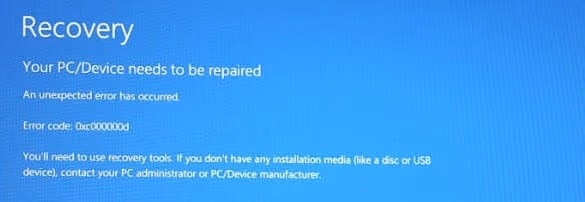

• A message stating “Your PC needs to be repaired”
• Inability to boot into Windows, often resulting in a boot loop
• Error messages mentioning missing or corrupted boot configuration data

In some cases, users might experience their Windows 7 stuck on the welcome screen, which could be related to boot configuration issues. For Windows 10 users, a similar issue might manifest as error 0xc0000098.

Basic Troubleshooting Steps

1. Using Windows Recovery Environment

To access the Windows Recovery Environment:

1. Insert Windows installation media (USB or DVD)
2. Restart your computer and boot from the installation media
3. Select “Repair your computer” when prompted

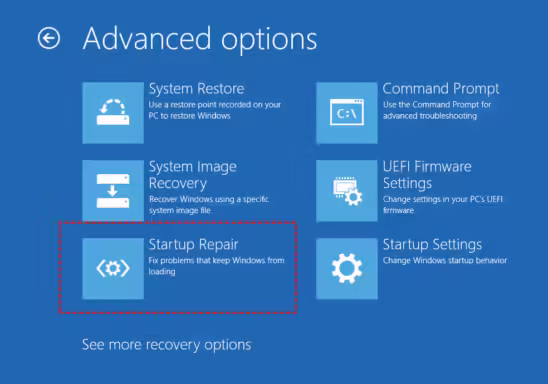

2. Running Startup Repair

Once in the Recovery Environment:

1. Choose “Troubleshoot” > “Advanced options” > “Startup Repair“
2. Follow the on-screen instructions to let Windows attempt automatic repairs

3. Attempting System Restore

If Startup Repair doesn’t resolve the issue:

1. In the Recovery Environment, select “System Restore“
2. Choose a restore point from before the error occurred
3. Follow the prompts to restore your system

It’s worth noting that system restore can take varying amounts of time depending on your system configuration and the amount of data involved.

Advanced Fixes Using Command Prompt

For more advanced users, Command Prompt offers powerful tools to address the 0xc000000d error.

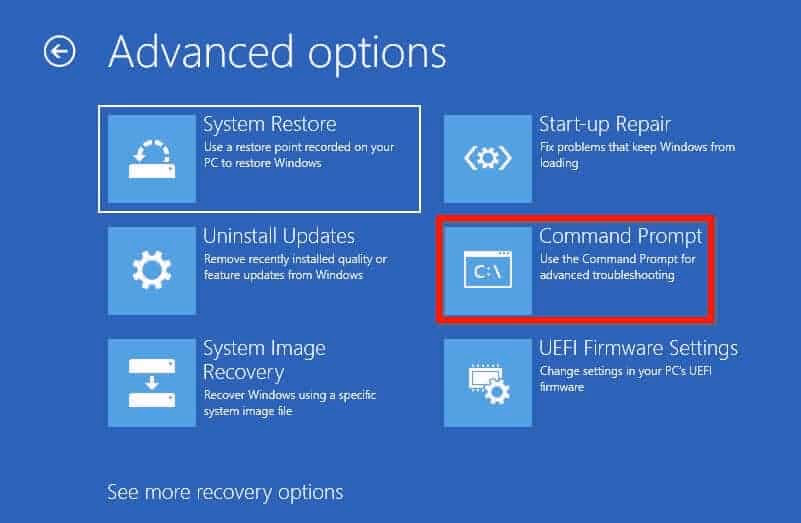

Accessing Command Prompt in Recovery Environment

1. Boot into the Windows Recovery Environment
2. Select “Troubleshoot” > “Advanced options” > “Command Prompt“

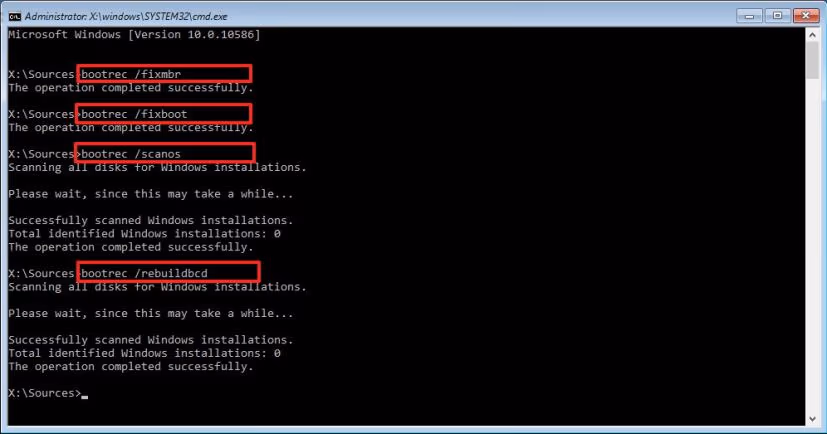

Using BootRec Commands

Execute the following commands in order:

bootrec /fixmbr
bootrec /fixboot
bootrec /scanos
bootrec /rebuildbcd

These commands repair the Master Boot Record, write a new boot sector, scan for Windows installations, and rebuild the BCD respectively.

Rebuilding BCD

If the above commands don’t work, try manually rebuilding the BCD:

1. In Command Prompt, type bcdedit /export C:\BCD_Backup to backup your current BCD
2. Then use c:\boot\bcd /create /d "Windows Boot Manager" to create a new BCD
3. Finally, run bcdedit /create {bootmgr} /d "Windows Boot Manager" to add the boot manager to the new BCD

Dealing with BitLocker Encryption

If your drive is encrypted with BitLocker, you’ll need to unlock it before performing repairs.

Unlocking BitLocker-protected Drives

1. In the Recovery Environment Command Prompt, use manage-bde -status to check BitLocker status
2. To unlock the drive, use manage-bde -unlock C: -rp <recovery-password>

Using Manage-BDE Commands

• manage-bde -protectors -disable C: temporarily disables BitLocker
• manage-bde -protectors -enable C: re-enables BitLocker after repairs

Always ensure you have your BitLocker recovery key available before attempting repairs on encrypted drives.

When All Else Fails: Reinstalling Windows

If none of the above methods work, a clean Windows installation may be necessary. However, before resorting to this option, you might want to try repairing Windows 10 without a CD, which can be less drastic and help preserve your data.

If a reinstall is unavoidable:

1. Create bootable Windows installation media using the Media Creation Tool
2. Boot from the installation media and choose “Custom: Install Windows only“
3. Select the drive to install Windows and follow the prompts

Note: This method will erase all data on the selected drive. Ensure you have backups of important files before proceeding.

Preventive Measures

To avoid encountering the 0xc000000d error in the future:

1. Regular Backups: Use Windows Backup or third-party solutions to regularly backup your system
2. Stable Power Supply: Consider using an Uninterruptible Power Supply (UPS) to prevent sudden shutdowns
3. Keep Windows Updated: Regularly install Windows updates to patch vulnerabilities and improve system stability
4. Use Antivirus Software: Protect your system from malware that could corrupt boot files
5. Proper Shutdown Procedures: Always use the proper shutdown method instead of forcing power off

Additionally, ensure that your Windows 10 PIN is working correctly, as PIN issues can sometimes lead to login problems that might be mistaken for boot errors.

Conclusion

The 0xc000000d boot error, while serious, can often be resolved with the right approach. From basic troubleshooting to advanced command-line fixes, this guide provides a comprehensive set of solutions to get your system back on track. Remember, if you’re uncomfortable performing these steps or if they don’t resolve the issue, don’t hesitate to seek professional help. Prompt action is key to minimizing data loss and system downtime when facing boot errors like 0xc000000d.

By understanding the causes, recognizing the symptoms, and following the preventive measures outlined in this guide, you can significantly reduce the risk of encountering this error in the future. Stay proactive in maintaining your system’s health to ensure a smooth and reliable computing experience.
