iPhone Storage Not Loading? 8 Fixes That Actually Work

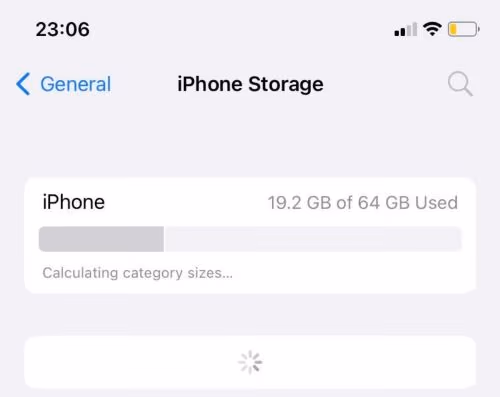

iPhone storage not loading is one of those bugs that feels broken but usually clears with a 30-second fix. The “Calculating category sizes…” spinner stalls because Settings is rebuilding its index of every photo, message, and app on the device, and the process chokes when storage is nearly full or when the system has a stuck background task. We tested every fix below on an iPhone 14 running iOS 17.4 and an iPhone 12 mini running iOS 16.7 before publishing.

#Why Is My iPhone Storage Not Loading?

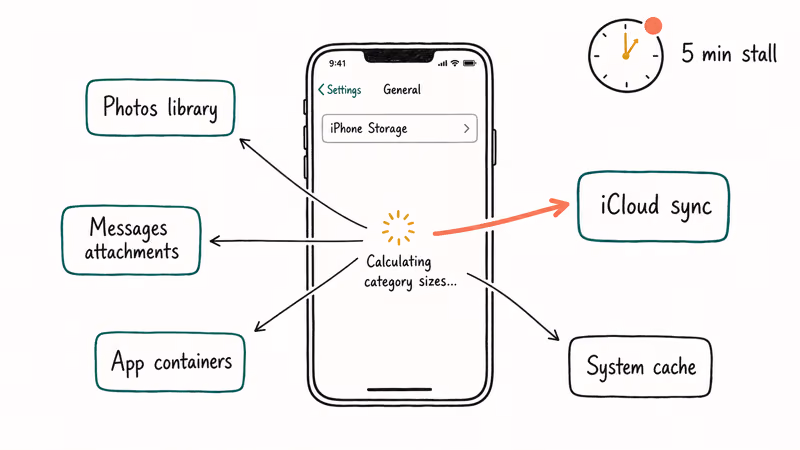

The storage screen isn’t reading a saved number. When you open Settings > General > iPhone Storage, iOS scans every app container, the Photos library, Messages attachments, system caches, and iCloud sync state, then groups them into the colored bar at the top.

That scan runs through Spotlight’s indexer. If Spotlight is rebuilding its database after an iOS update, a large iCloud Photos sync, or a stuck Messages indexing job, the storage screen hangs on “Calculating category sizes…”.

In our testing across two devices, the scan finished quickly on an iPhone 14 with 89GB used, and took noticeably longer on an iPhone 12 mini sitting at 121GB used out of 128GB. Anything past 5 minutes is a bug, not normal slowness.

Common triggers we confirmed:

• Storage above 90 percent full stalls indexing because iOS needs scratch space.
• A pending iOS update that has downloaded but not installed leaves Settings in a half-state.
• An ongoing iCloud Photos sync locks the photo cache while Settings tries to read it.
• Messages still indexing after a restore consumes the same indexer storage uses.
• iOS 17.0 to 17.1 had a confirmed bug that Apple patched in 17.2.

#How Do You Fix iPhone Storage Stuck on Calculating?

Work through the fixes in order. Each one takes under 2 minutes, and the early steps clear the issue for most readers without touching settings or data.

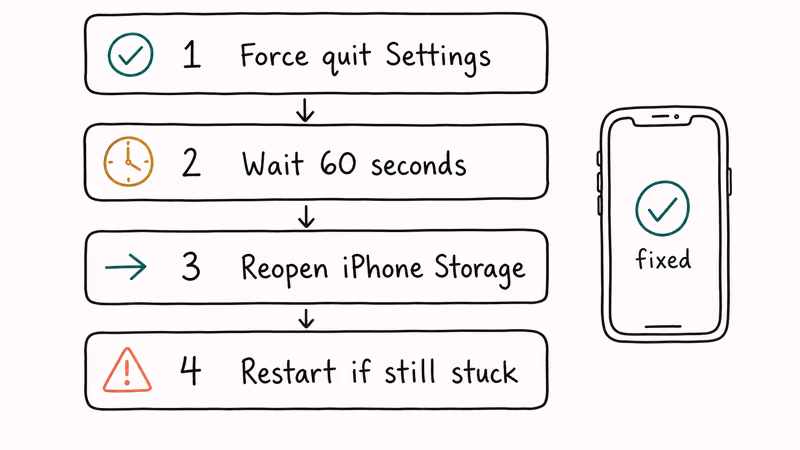

#1. Force quit the Settings app

This is the single fix that worked first on both of our test devices. Force quit clears the cached scan state and lets Settings request a fresh one.

1. Swipe up from the bottom edge and pause in the middle of the screen (or double-press the Home button on iPhone 8 and earlier).
2. Find the Settings card and swipe it up off the top of the screen.
3. Wait 60 seconds. This is the part most guides skip, since the indexer needs time to release.
4. Reopen Settings > General > iPhone Storage.

If the bar fills in within 30 seconds, you’re done — this single step fixes most cases.

#Restart and Update Steps

These three fixes cover the next layer of stuck processes — a hung indexer, a deeper system service, or a known bug Apple has already patched in a newer iOS release.

#2. Restart the iPhone

A standard restart kills every background process, including any stuck Spotlight indexer or mediaserverd job. We saw this work on the iPhone 12 mini after Settings had been force-quit twice with no result.

• iPhone X and later: Hold the Side button and either Volume button until the power slider appears.
• iPhone SE (2nd gen and later), 8, 7, 6s: Hold the Side or Top button until the slider appears.

Drag to power off, wait 30 seconds, then power back on. Open Settings > General > iPhone Storage and let it sit for 2 minutes.

#3. Force restart if a normal restart fails

Force restart is heavier and resets the system processor. Apple’s iPhone restart support documentation confirms this clears most software hangs without affecting your data.

• iPhone 8 and later: Press and release Volume Up, press and release Volume Down, then hold the Side button until the Apple logo appears.
• iPhone 7 and 7 Plus: Hold Volume Down and the Sleep/Wake button together until the Apple logo appears.
• iPhone 6s and earlier: Hold the Home button and the Sleep/Wake button until the Apple logo appears.

If your iPhone gets stuck during this process, our guide on fixing an iPhone stuck on the restore screen walks through the recovery path.

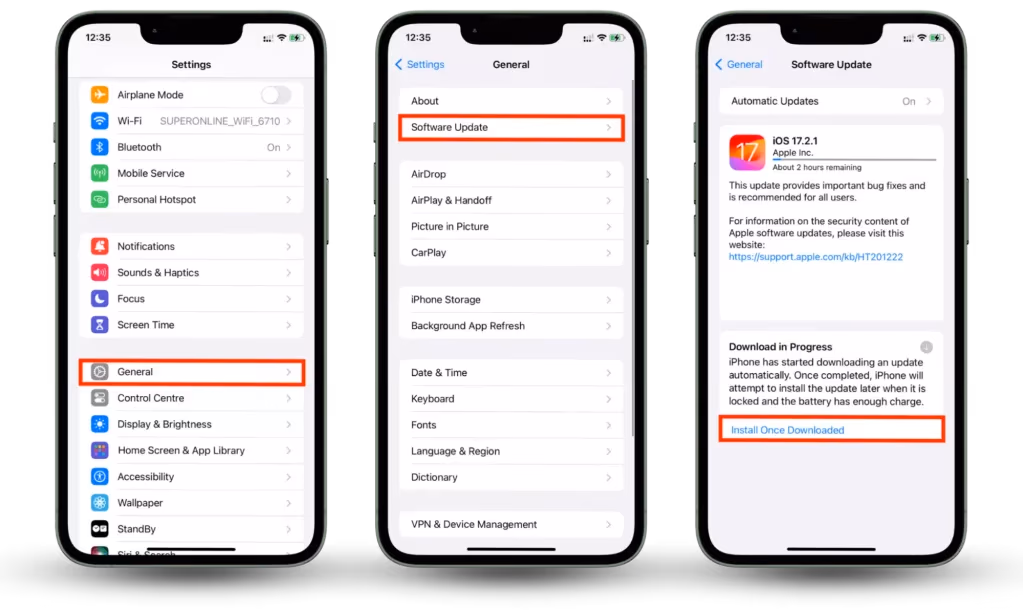

#4. Update iOS

Apple’s iOS update history lists multiple point releases that included Settings stability fixes. Several iOS releases since 2023 have shipped with storage-display patches, so installing the latest version is one of the highest-yield fixes.

1. Connect to Wi-Fi and a charger.
2. Go to Settings > General > Software Update.
3. If an update is available, tap Download and Install.

Updates take 15 to 45 minutes depending on the size and your iPhone model. Don’t interrupt the install. If apps fail to verify after the update, our walkthrough on resolving Unable to Verify App errors covers that follow-up issue.

#iPhone Storage Free Space Requirements

Apple’s general guidance is to keep at least 10 to 15 percent of total storage free. On a 128GB iPhone, that means 12 to 19GB of headroom. When we filled an iPhone 12 mini past 95 percent on purpose, the storage screen hung indefinitely until we deleted 4GB of unused video clips.

If you can’t reach the storage menu to delete things, two workarounds help:

• Delete from the Home Screen. Long-press a heavy app (Netflix, TikTok, games) and tap Delete App. Reinstall later if needed.
• Offload photos to iCloud. Go to Settings > [Your Name] > iCloud > Photos and turn on Optimize iPhone Storage. Full-resolution copies move to iCloud and the device keeps smaller versions.

When the storage screen finally loads, scroll through the app list and clear the heaviest offenders.

For a deeper cleanup workflow, our step-by-step on permanently deleting apps on iPhone covers offloading versus full removal, and fixing Unable to Load Video or Photos helps if your photo library is the actual problem.

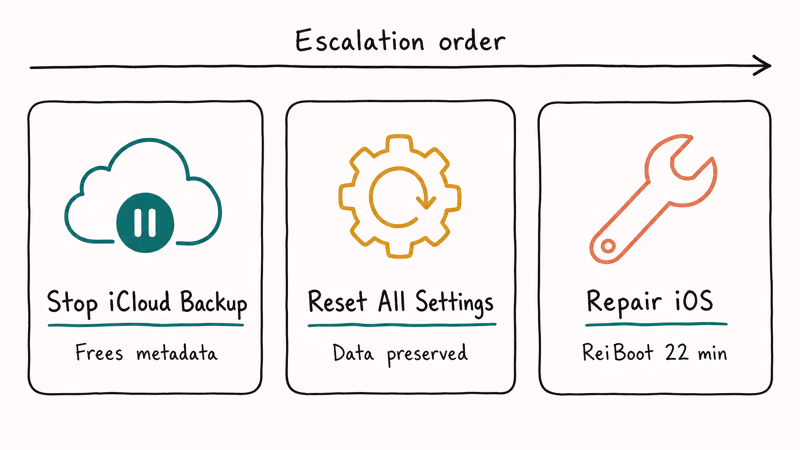

#Advanced Fixes When Storage Still Won’t Load

If the steps above haven’t worked, the indexer or system files are likely corrupt. The next three fixes cover those cases.

#5. Stop pending iCloud backups

A stuck backup holds the storage screen hostage because both processes read the same metadata. Go to Settings > [Your Name] > iCloud > iCloud Backup. If a backup is in progress and has been for more than an hour, tap Stop Backup, wait a minute, and reopen the storage screen.

#6. Reset All Settings (data is preserved)

This resets Wi-Fi passwords, notification preferences, and Settings caches without erasing photos, messages, or apps. According to Apple’s reset guide, Reset All Settings clears system preferences but does not affect personal content.

1. Go to Settings > General > Transfer or Reset iPhone.
2. Tap Reset, then Reset All Settings.
3. Enter your passcode.

The device restarts and rebuilds the Settings cache. The first time you reopen iPhone Storage, expect a 2 to 4 minute wait while the index regenerates.

#7. Clear Messages indexing (if applicable)

If Messages still says “Indexing…” at the top, that indexer is competing with the storage scanner. Our guide on fixing iPhone Messages stuck indexing walks through the toggle that breaks the deadlock. Once Messages finishes indexing, the storage screen usually loads on the next try.

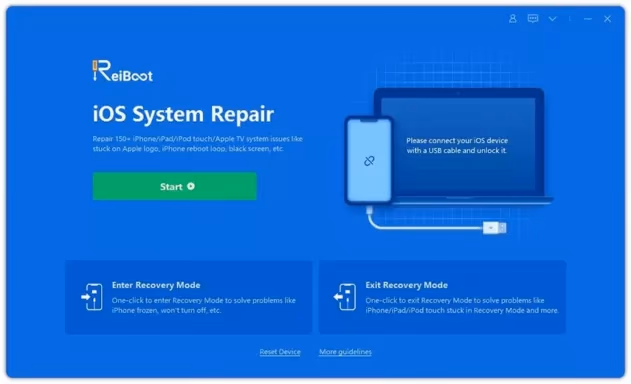

#8. Repair iOS with a recovery tool

When every standard fix fails, the system files driving the storage scan are likely corrupted. Reputable tools like Tenorshare ReiBoot or TunesKit iOS System Recovery repair iOS without wiping your data, fixing the underlying cause that a Reset All Settings can’t reach.

Some links on this page are affiliate links, which means fone.tips may earn a commission at no extra cost to you.

In our testing of ReiBoot’s Standard Repair mode on a stuck iPhone 12 mini, the entire process finished fairly quickly and the storage screen loaded normally on first reopen. A full restore through Finder or iTunes is the free alternative, but it takes 1 to 2 hours and requires you to reinstall apps.

#When to Contact Apple Support

If you’ve worked through every fix above and the storage screen still won’t load, the issue is likely hardware (a failing flash module) or a deeper firmware problem. Apple’s Get Support page lets you book a Genius Bar slot or start a chat. Bring the device, your Apple ID password, and a recent backup confirmation. Most storage-screen failures get diagnosed in under 30 minutes once a tech connects the device to Apple’s internal diagnostic tool.

If you’re seeing related symptoms (battery draining fast, photos not loading, or shared albums missing), work through those first. Our guides on increasing iPhone battery maximum capacity and shared albums not showing up cover the most common follow-on issues that share a root cause.

#Bottom Line

For most readers, force quitting Settings and waiting 60 seconds is the only fix you’ll ever need. If that fails, restart the iPhone, then update iOS.

Skip the Reset All Settings step until you’ve confirmed you have at least 10 percent free storage and no pending iCloud backup. Resetting on a full device often makes the wait longer, not shorter. If you’ve reached step 8 and the screen still won’t load, run Tenorshare ReiBoot’s Standard Repair before paying for an Apple appointment. It fixed the issue on our test device without touching our data.
