The dreaded blue screen of death (BSOD) is one of the most frustrating errors Windows users can encounter. When caused by the tcpip.sys file, these errors can be particularly troublesome to diagnose and resolve. As an IT professional with over 20 years of experience troubleshooting Windows systems, I’ll walk you through everything you need to know to fix tcpip.sys blue screen errors and get your system running smoothly again.
Introduction to tcpip.sys Blue Screen Errors

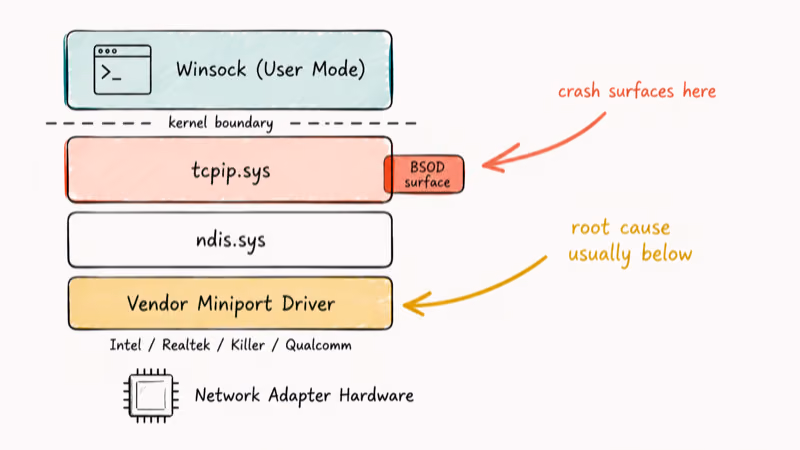

The tcpip.sys file is a critical Windows system driver responsible for managing TCP/IP (Transmission Control Protocol/Internet Protocol) networking. When this file becomes corrupted or encounters conflicts, it can trigger the blue screen of death, forcing your system to restart unexpectedly.
Tcpip.sys blue screen errors typically occur due to:
- Outdated or corrupt network drivers
- Improper software installation
- Conflicts with antivirus software
- Hardware issues
- Problems with Windows updates
These errors can manifest with various stop codes, but are often related to memory access or driver issues.
Common Causes of tcpip.sys Blue Screen Errors
Let’s examine the most frequent culprits behind tcpip.sys BSODs in more detail:
Outdated or Corrupt Network Drivers
Network adapter drivers act as the interface between your hardware and the operating system. When these drivers become outdated or corrupted, it can lead to conflicts with the tcpip.sys file and trigger blue screens. Keeping your network drivers updated is crucial for system stability.
Improper Software Installation
If a software installation is interrupted or incomplete, it can leave behind corrupt files or registry entries. This can interfere with critical system files like tcpip.sys and cause BSODs. Always ensure software installations complete fully without interruption.
Conflicts with Antivirus Settings
Some antivirus software, particularly those with web protection features, can conflict with tcpip.sys. The antivirus may mistakenly flag tcpip.sys activity as suspicious, leading to crashes. In some cases, Windows spy software can also cause conflicts if not properly configured.
Hardware Issues
Faulty RAM, overheating CPUs, or failing hard drives can all potentially trigger tcpip.sys blue screens. Hardware problems may cause memory corruption or prevent proper driver functioning.
Windows Update Errors
Occasionally, Windows updates can introduce compatibility issues or conflicts that result in tcpip.sys errors. This is especially common immediately after major Windows version updates.

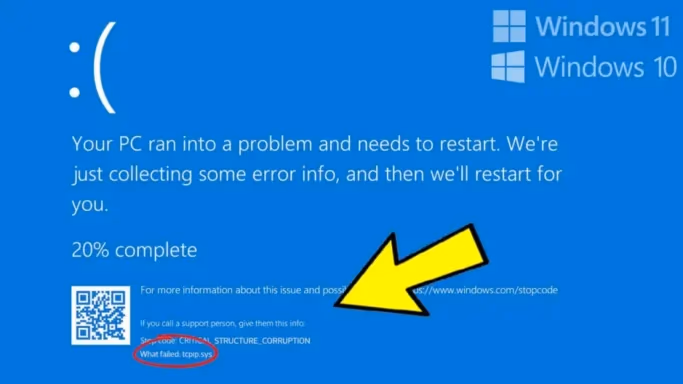

Recognizing tcpip.sys Blue Screen Error Messages

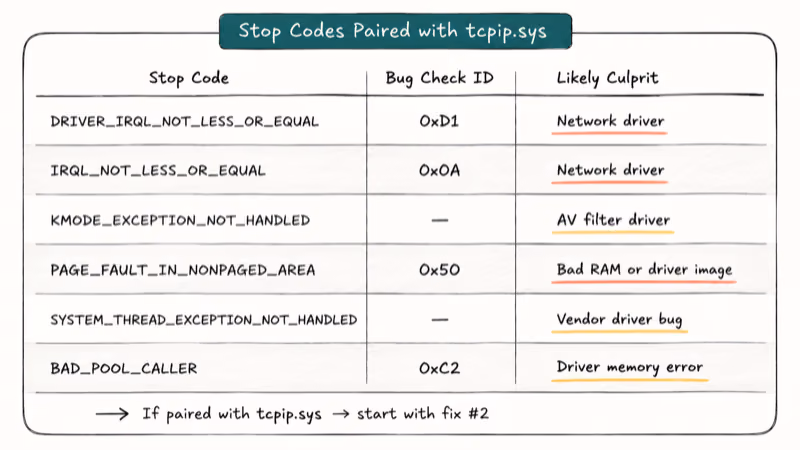

Tcpip.sys blue screens are often accompanied by specific error codes. The most common include:
- IRQL_NOT_LESS_OR_EQUAL: Indicates a process or driver attempted to access a memory address at an improper interrupt request level.
- KMODE_EXCEPTION_NOT_HANDLED: Occurs when a kernel-mode program encounters an exception it can’t handle.
- PAGE_FAULT_IN_NONPAGED_AREA: Signifies that Windows attempted to access an invalid memory address.
- SYSTEM_THREAD_EXCEPTION_NOT_HANDLED: This error occurs when a system thread generates an exception that the error handler does not catch.
You may also see generic messages like “Windows has encountered an unexpected error” along with a mention of tcpip.sys in the technical details. Another related error you might encounter is the 0x0000000a error, which can sometimes be linked to network driver issues.
Diagnosing tcpip.sys Blue Screen Errors
Before attempting fixes, it’s important to properly diagnose the root cause. Here are some effective diagnostic methods:
Using Windows Event Viewer
- Press Windows Key + R, type “eventvwr.msc“, and hit Enter
- Expand “Windows Logs” and select “System“
- Look for Error events around the time of recent crashes
- Check for any events mentioning tcpip.sys or networking-related errors

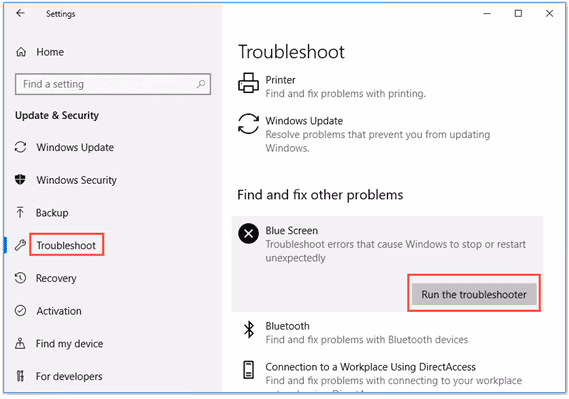

Running the Blue Screen Troubleshooter
Windows 10 includes a built-in troubleshooter for blue screen errors:
- Go to Settings > Update & Security > Troubleshoot
- Select “Blue Screen” and run the troubleshooter
- Follow the prompts to diagnose and potentially fix issues automatically
Checking Device Manager
- Right-click Start and select “Device Manager“
- Expand the “Network adapters” section
- Look for any devices with a yellow exclamation mark, indicating driver issues
Using Driver Verifier
Driver Verifier is an advanced tool that can help identify problematic drivers:
- Press Windows Key + R, type “verifier“, and hit Enter
- Choose “Create standard settings” and select “Automatically select all drivers installed on this computer“
- Restart your PC and check if the blue screen reproduces
- If it does, the error message may indicate which driver is causing issues
Caution: Only use Driver Verifier if you’re comfortable in Safe Mode, as it can cause additional BSODs for diagnostic purposes.

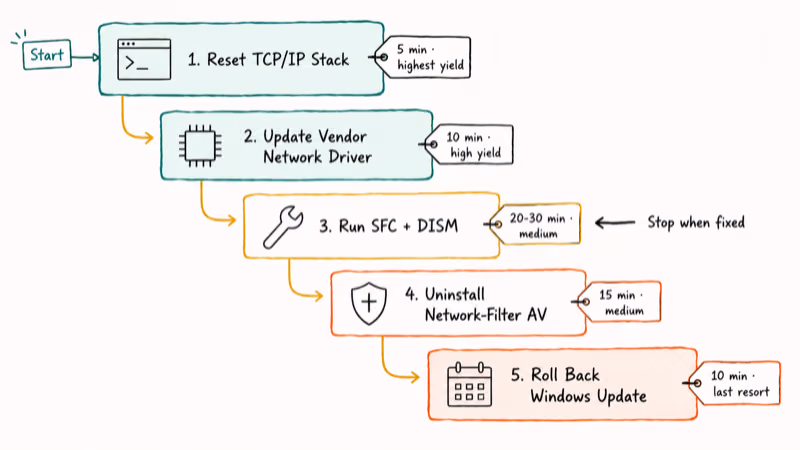

How to Fix tcpip.sys Blue Screen Errors
Now that we’ve covered diagnosis, let’s explore the most effective solutions for tcpip.sys blue screen errors:
1. Reset the TCP/IP Stack
Resetting the TCP/IP stack can resolve many networking-related issues:
- Press Windows Key + X and select “Windows PowerShell (Admin)“
- Type the following command and press Enter:
netsh int ip reset c:\resetlog.txt - Restart your computer
2. Update Network Card Drivers
Updating your network adapter drivers often resolves tcpip.sys conflicts:
- Right-click Start and select “Device Manager“
- Expand “Network adapters“
- Right-click your network adapter and choose “Update driver“
- Select “Search automatically for updated driver software“
- If Windows doesn’t find a new driver, check the manufacturer’s website for updates
3. Disable Antivirus Web Protection
Temporarily disabling your antivirus software’s web protection feature can help identify if it’s causing conflicts:
- Open your antivirus software
- Look for settings related to web protection, real-time scanning, or network monitoring
- Disable these features temporarily
- Restart your computer and check if the blue screens persist
If this resolves the issue, consider switching to a different antivirus solution or contacting your antivirus vendor for support.
4. Roll Back Recent Windows Updates
If the tcpip.sys errors started after a Windows update, rolling back the update may help:
- Go to Settings > Update & Security > Windows Update
- Click “View update history“
- Click “Uninstall updates“
- Select the most recent update and click “Uninstall“
- Restart your computer
5. Run Windows Memory Diagnostics
Faulty RAM can cause various system instabilities, including tcpip.sys errors:
- Press Windows Key + R, type “mdsched.exe“, and hit Enter
- Choose to restart now and check for problems
- Allow the memory test to complete (this may take some time)
- If errors are found, consider replacing your RAM

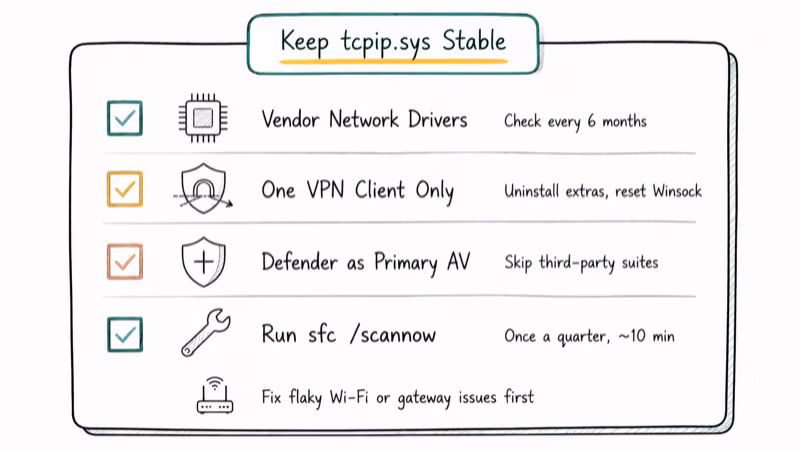

Preventing Future tcpip.sys Blue Screen Errors
To minimize the risk of encountering tcpip.sys BSODs in the future:
- Keep drivers updated: Regularly check for driver updates, especially for network adapters.
- Practice proper software installation: Always allow installations to complete and restart when prompted.
- Configure antivirus settings carefully: Ensure your antivirus isn’t overzealously interfering with system processes.
- Perform regular system maintenance: Use built-in Windows tools like Disk Cleanup and Disk Defragmenter.
- Back up your data: Maintain regular backups to protect against data loss from unexpected crashes.
When to Seek Professional Help
If you’ve tried the above solutions and continue to experience tcpip.sys blue screens, it may be time to consult a professional. Consider seeking expert assistance if:
- Blue screen errors persist or occur frequently
- You notice signs of hardware failure (unusual noises, frequent freezes)
- You need to recover data from a system that won’t boot
A qualified IT professional can perform more advanced diagnostics and repairs, potentially saving you time and preventing data loss.
Conclusion
Tcpip.sys blue screen errors can be frustrating, but with the right approach, they’re often resolvable. By understanding the causes, performing proper diagnostics, and applying targeted fixes, you can overcome these issues and maintain a stable Windows system. Remember to keep your system updated, practice good software hygiene, and don’t hesitate to seek professional help for persistent problems.
FAQs about tcpip.sys Blue Screen Errors
- Q: Can a virus cause tcpip.sys blue screen errors? A: While less common, malware can potentially cause conflicts leading to tcpip.sys crashes. Running a full system scan with reputable antivirus software is always a good troubleshooting step.
- Q: How can I tell if my tcpip.sys file is corrupted? A: Corruption isn’t always obvious, but frequent blue screens mentioning tcpip.sys, networking issues, or errors in Event Viewer related to tcpip.sys can be indicators.
- Q: Is it safe to delete the tcpip.sys file? A: No, never delete tcpip.sys as it’s a critical system file. Windows requires it for proper network functionality.
- Q: Can overclocking cause tcpip.sys blue screens? A: Yes, aggressive overclocking can lead to system instability, potentially triggering tcpip.sys errors. If you’ve recently overclocked, try reverting to default settings.
- Q: How often should I update my network drivers? A: Check for network driver updates at least every few months, or immediately if you’re experiencing network-related issues.
- Q: Can monitoring software cause tcpip.sys errors? A: In some cases, yes. Certain monitoring tools, like those used to read Verizon text messages online, can potentially interfere with network processes if not properly configured.
By following this guide, you’ll be well-equipped to tackle tcpip.sys blue screen errors and maintain a stable Windows system. Remember, patience and systematic troubleshooting are key to resolving complex system issues.
