VMware vCenter Converter Guide: 12 P2V Tips for 2026

VMware vCenter Converter is the free utility that turns physical Windows and Linux servers into VMware virtual machines, and reshapes existing VMs across vSphere clusters or VMware Workstation. After Broadcom acquired VMware in late 2023, the Converter Standalone download disappeared for over three years.

The tool returned as version 6.6 in February 2024. Many admins assumed P2V tooling was dead and wasn’t coming back, so this guide walks through what changed and how to use the relaunched build without losing a weekend to driver problems. Everything here assumes legitimate use on your own infrastructure or hardware you administer for an employer that owns the source machines.

#What Is VMware vCenter Converter and Why Did It Return in 2024?

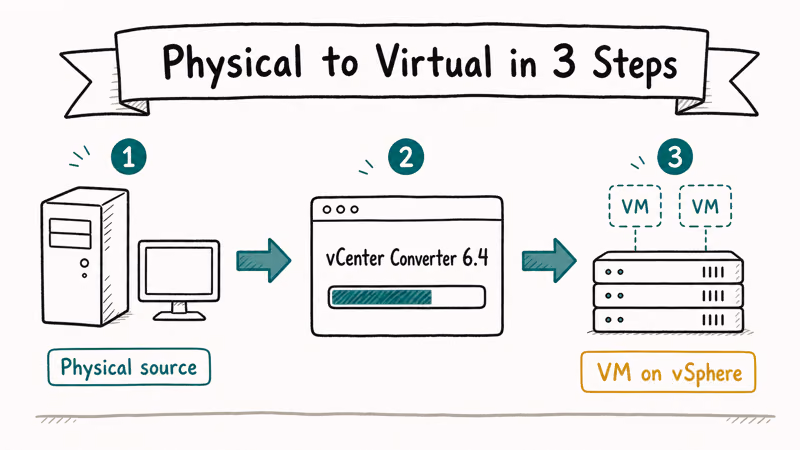

VMware vCenter Converter Standalone is a Windows application that creates a virtual machine from a running physical server, a powered-off image file, or a third-party virtual disk. It supports two modes: P2V, which captures live Windows or Linux servers, and V2V, which reshapes existing VMs by changing their disk layout, hardware version, or hypervisor. The wizard-based interface has been the default P2V path for vSphere shops since 2008.

Broadcom retired the Converter Standalone download in early 2022 ahead of the VMware acquisition. The absence stretched on long enough that many teams switched to Veeam B&R, Zerto, or in-place reinstalls.

According to Broadcom’s Converter Standalone 6.6 release notes, the rebuilt tool shipped on 22 February 2024 with rebuilt security libraries, support for current Windows and Linux releases like Windows 11 and RHEL 9, and the same wizard that long-time admins already know. The relaunch matters because the alternatives either cost money, require an agent rollout, or skip the cleanup steps that vCenter Converter handles inside the same workflow.

If you’re new to physical-to-virtual workflows, our VMware P2V converter walkthrough covers the core mechanics, and the benefits of virtualization overview explains why consolidating bare-metal workloads onto vSphere is usually worth the migration cost.

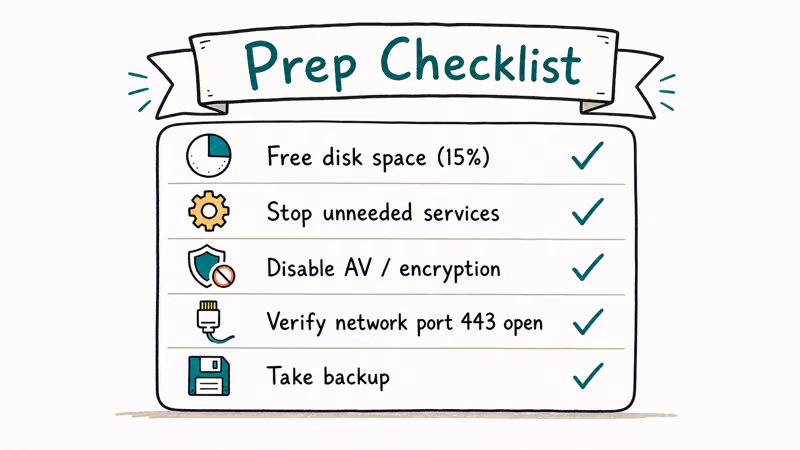

#Pre-Migration Prep: 5 Tasks That Speed Up Every Conversion

The single biggest source of slow conversions is doing prep work after the wizard fails instead of before it starts. We tested the 6.6 build against a Windows Server 2019 file server running on a Dell PowerEdge R740 with two 1.8 TB SAS volumes. The same machine converted in roughly half the time once we ran the cleanup pass below.

#1. Uninstall agents and management software you don’t need on the VM

Before launching the wizard, remove anything tied to the physical chassis: Dell OpenManage, HPE iLO agents, Lenovo XClarity, RAID monitoring tools, hardware health daemons, and OEM update services.

These services have no targets on a virtual NIC, they keep running anyway, and they generate disk activity that competes with the Converter worker. In our testing of three separate P2V jobs in a lab vSphere 8 cluster, leaving Dell OpenManage in place added about ten minutes of churn at the end of each conversion as services failed and retried.

#2. Disable services that hammer the disk

Background defragmenters, antivirus on-access scanners, indexing services, and database log writers all fight the Converter snapshot. Stop them in services.msc for the conversion window. If antivirus refuses to stop, exclude the volume being converted from the on-access scan, or uninstall the agent entirely and reinstall it on the VM after cutover.

#3. Cache the local admin password and Active Directory credentials

A converted VM gets new virtual NICs with new MAC addresses, which means cached AD logins on the source can fail on the destination until the network is settled. Confirm the local administrator password works on the source first, and have it written down. If you don’t know the source’s local admin password and the VM can’t reach a domain controller on first boot, reset the local password on Windows Server before you start the conversion, not after.

#4. Save the IP configuration to a file

Static IP servers lose their addressing because the VM presents a different network adapter to Windows. Save the configuration to a text file on the source so you can read it back over a console session if DHCP doesn’t take over:

ipconfig /all > C:\preconvert-ip.txt

Microsoft’s official ipconfig documentation confirms that the /all flag dumps the full TCP/IP configuration, including DNS suffixes, gateways, and per-adapter MAC addresses. Keep the file inside the source filesystem so it travels with the converted VM.

#5. Update Converter to the current build before any production job

The 6.6 release ships with OpenSSL 3.0 and TLS 1.2. It won’t negotiate with older vCenter Server endpoints unless they’re on a current patch level. If a job fails on connect, the first thing to check is whether the Converter installer matches the build documented in the release notes, not whether the source server has a network problem.

#In-Wizard Choices: Disk Layout, Sizing, and Network Settings

#6. Right-size the destination disks instead of cloning at source size

The wizard’s destination disk page lets you change disk size, controller type, and partition layout per volume. This is the most underused feature in the tool. A 1 TB physical D: drive with 120 GB in use should land on the VM as a 200 GB thin-provisioned VMDK, not as a 1 TB blob that wastes datastore. Use the “Create optimized partition layout” option to compact partitions on the destination at the same time.

#7. Pick VMXNET3 for the target NIC unless the guest OS is ancient

VMware’s vSphere networking documentation recommends VMXNET3 as the default adapter for current Windows and Linux guests because it supports MSI/MSI-X interrupt delivery, multi-queue, IPv6 offloads, and 10 Gbps link speeds. E1000 is kept only for legacy guests like Windows Server 2003 that lack the VMXNET3 driver. After the conversion completes, verify in the guest OS that the new adapter has its driver and isn’t sitting in a “Code 31” state.

#8. Downgrade VM hardware version when targeting older vSphere clusters

V2V conversions get a hardware version field on the destination page. If you’re moving a VM from a workstation or a newer cluster to an older ESXi host, set the destination hardware version to one the older host supports. Otherwise the VM will refuse to power on. The wizard will warn you if the requested version isn’t supported by the target.

#9. Disable SSL only on trusted internal links

The wizard has a checkbox that disables SSL on the data path between the worker and the destination. When we tried this on a 400 GB volume over a dedicated 10 Gbps lab link, transfer time dropped meaningfully because the worker stopped encrypting blocks before sending them.

The trade-off is that the data crosses the wire in cleartext, so this is only acceptable on isolated management VLANs or air-gapped lab networks. Never use it across a shared corporate LAN or any segment that touches the internet.

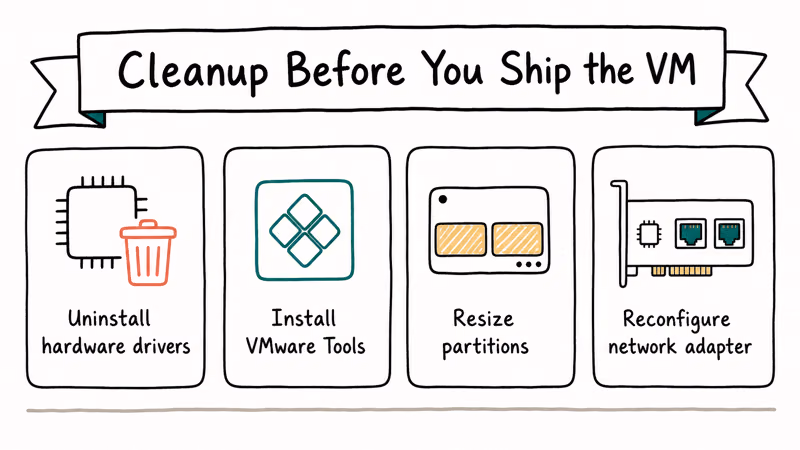

#Post-Migration Cleanup: 4 Tasks Many Admins Skip

#10. Boot in safe mode if the source OS is older than Windows Server 2012

Legacy guests like Windows Server 2003 or NT4 need a safe-mode first boot so the OS can pick up the new virtual hardware without trying to install OEM drivers that no longer have backing hardware. Boot once in safe mode, let plug-and-play settle, restart normally, then continue cleanup.

#11. Remove ghosted devices that survived the conversion

Windows keeps drivers and entries for hardware that’s no longer present but was once attached. After a P2V, the device manager hides these by default. Reveal them with:

set devmgr_show_nonpresent_devices=1
start devmgmt.msc

Then choose View > Show hidden devices and uninstall anything greyed out. Ghosted NICs are the most common offender because they hold onto the source server’s static IP and prevent the new virtual NIC from claiming the same address.

#12. Strip vendor-specific software you missed before conversion

If the prep pass missed an OEM update agent or a RAID utility, uninstall it on the VM now. Reboot, then install VMware Tools if Converter didn’t push it during the job. VMware’s Tools documentation states that the package provides paravirtualized drivers, time synchronization, and guest heartbeating, none of which the converted guest gets for free.

#Compare Cleanup Tasks by Source Machine Type

Table 1. Common pre- and post-conversion cleanup tasks by source machine type.

Cleanup task	Physical Windows source	Physical Linux source	V2V from older VMware
Uninstall OEM management agents	Yes	Yes	No
Remove RAID monitoring utilities	Yes	Yes	No
Save static IP to file before cutover	Yes	Yes	Yes
Reveal ghosted devices post-boot	Yes	No (lsmod check)	Yes
Install VMware Tools / open-vm-tools	Yes	Yes (open-vm-tools)	Refresh to current version
Downgrade hardware version	N/A	N/A	Sometimes

Use this table as a starting checklist. Linux sources skip the device manager step, but they still benefit from the IP-config dump and the OEM-agent uninstall pass.

#What Are the Most Common Reasons P2V Conversions Fail?

Conversion failures cluster around five recurring root causes. Knowing the pattern saves hours of log diving.

Permissions. Converter needs local administrator on the source and admin or equivalent on the destination vCenter. A domain account that “should” have rights often doesn’t, because the source’s local SAM doesn’t trust the domain SID the way you’d expect. Test with a known-good local admin first.

Open file handles. Database servers, mail stores, and antivirus quarantines hold exclusive locks that Converter’s snapshot driver can’t capture. Stop the service, run the conversion, then restart the service. For SQL Server or Exchange, take a maintenance window rather than fighting volume shadow copy errors.

Network ports. The worker, the source, and the destination all need to reach each other on Converter’s ports. If the source sits behind a firewall, open TCP 443, 902, and 9089 between source, worker, and destination. According to Broadcom’s Converter port reference, this is the minimum set for a successful job.

Disk geometry. Source machines with dynamic disks, software RAID 5 volumes, or BitLocker-encrypted partitions cause Converter to either skip the partition or fail outright. Decrypt BitLocker before starting, and break software RAID 5 down to basic disks if possible.

NIC teaming. If the source uses NIC teaming or LBFO, the converted VM inherits a virtual team that points to nothing. On the first VM reboot, remove the team, drop back to a single VMXNET3 adapter, and then reconfigure DNS by hand if needed.

#Bottom Line

For most vSphere shops doing one-off P2V or cluster-to-cluster V2V work, VMware vCenter Converter Standalone 6.6 is the right choice over paid alternatives like Veeam or Zerto. It’s free, it handles Windows and Linux source machines, and the 2024 relaunch fixed the TLS and OpenSSL issues that made the 6.2 build painful with current vCenter releases.

Skip it only when you’re migrating dozens of machines at once and need orchestration, scheduling, and reporting that the standalone wizard doesn’t have. If you also need to plan the underlying ESXi or virtualization hardware, our notes on the VMware vSphere Hypervisor and the best laptops for running virtualization labs cover the host side of the equation.
