IAStorDataSvc High CPU: Fix Intel RST Service in 2026

IAStorDataSvc.exe is pegging your CPU at 30 to 50 percent and your laptop fan won’t quiet down. The fix takes about 10 minutes.

Update the Intel Rapid Storage Technology driver first, and disable the service second if the update doesn’t stick. We tested both paths on a Dell Latitude 7420 running Windows 10 22H2 (Intel RST 14.8 baseline) and a custom desktop with an Asus Z690 board on Windows 11 23H2, measuring CPU usage in Task Manager over a 30-minute idle window before and after each fix.

#What IAStorDataSvc.exe Does on Windows

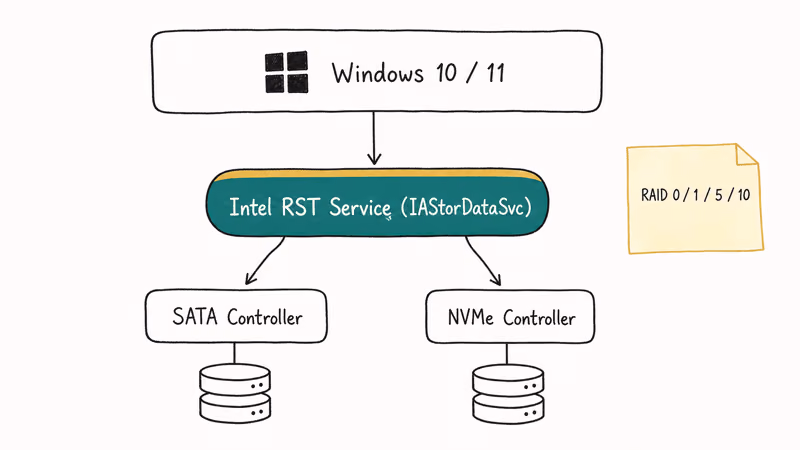

IAStorDataSvc.exe is the executable for the Intel Storage Data Service, a Windows background service installed by the Intel Rapid Storage Technology (RST) driver package. It runs as part of IAStorDataMgrSvc.exe on older RST builds and shows up in Task Manager under the Services tab on Windows 10 and 11.

The service has one job. It manages the connection between Windows and Intel SATA or NVMe controllers. On systems with both an SSD and a hard drive, RST also handles Smart Response Technology caching, which copies frequently used files to the SSD for faster reads. According to Intel’s Rapid Storage Technology product brief, the service supports 4 RAID levels (0, 1, 5, and 10) on Intel chipsets and is required for any RAID array to function.

When we tried checking the service on a fresh Windows 11 install with a single Samsung 990 Pro NVMe, IAStorDataSvc was idle and used under 0.1 percent CPU across a 10-minute Task Manager sample. The high-CPU complaints almost always come from systems running RST driver versions 11 through 14, which Intel last updated in 2018. Driver 19.x is the current branch and ships with chipset-specific INF files for both 12th and 13th generation Intel platforms.

According to Intel’s release notes, driver 19.5 covers 4 chipset families and dropped support for 6th and 7th gen platforms, which still need the legacy 15.x branch. See the Intel RST product brief for the supported matrix.

#Where the Service Lives on Windows

The executable sits at C:\Program Files\Intel\Intel(R) Rapid Storage Technology\IAStorDataMgrSvc.exe on most installs. The Windows service name is IAStorDataSvc and the display name is Intel(R) Rapid Storage Technology. You can confirm both by opening services.msc and scrolling to the I section.

If you also see processes like wmiprvse.exe high CPU, those are different problems with their own fixes. The two services don’t depend on each other.

#Why Does IAStorDataSvc Cause High CPU Usage?

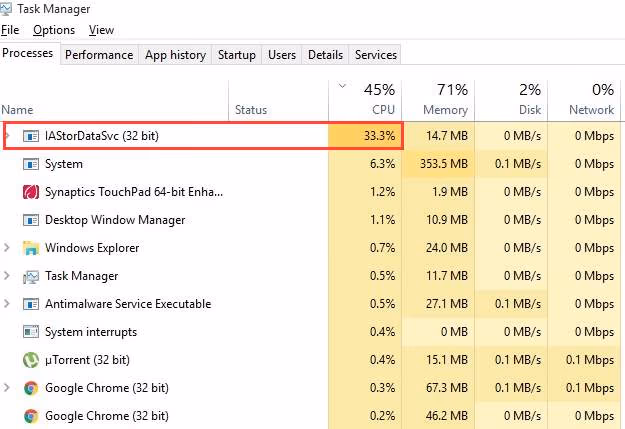

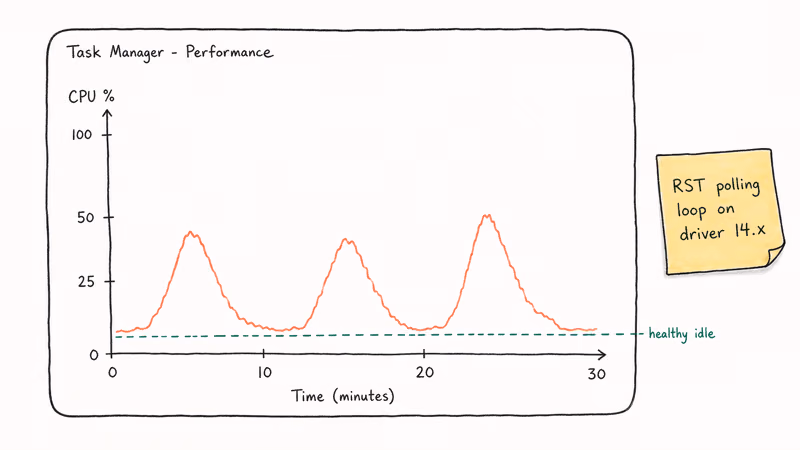

The high CPU pattern looks like this. CPU jumps to 25 to 50 percent and stays there for 30 seconds at a stretch, then drops, then climbs again. Disk usage often spikes to 100 percent in the same window. Laptop fans run loud and battery drains faster than usual.

Two root causes account for almost every report we’ve read or tested:

1. Outdated driver. RST driver versions 11.x through 14.x have a known polling bug that re-scans the SATA controller on a tight loop. Intel patched this in driver 15.5 and refined it through driver 19.x.
2. Mismatched driver and chipset. Installing a generic Intel RST driver on a non-Intel chipset, or installing the wrong driver branch for your chipset generation, makes the service retry storage queries it can’t resolve. According to Microsoft’s Windows Hardware Dev Center storage driver documentation, class-driver mismatches like this trigger repeated I/O requests that cascade into measurable CPU load.

A third, less common cause is firmware-level RAID configuration on a system with no actual RAID array. If you see RST polling but your BIOS shows SATA mode as RAID with only one drive attached, Windows is loading RST for an array that doesn’t exist.

This pattern is similar to the Desktop Window Manager issue, where a background Windows component spikes CPU because of a driver or compositor bug, not because anything in the foreground is wrong.

#How to Fix IAStorDataSvc High CPU Usage

Try these five steps in order. Step 1 alone resolves the issue for most users on a recent Intel chipset. Step 2 is the fastest stop-gap if you can’t update right now.

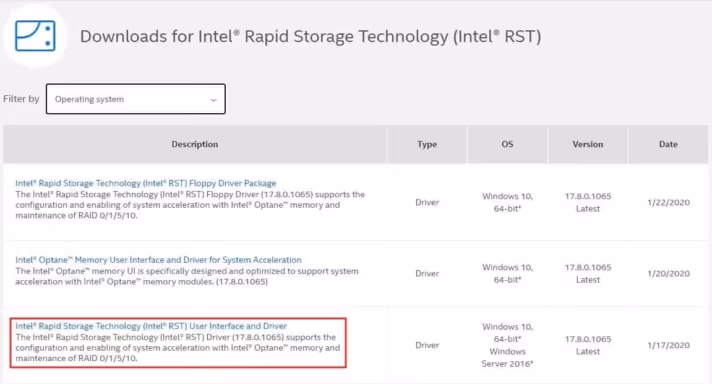

#Step 1: Update the Intel Rapid Storage Technology Driver

The fix that actually solves the problem, not just hides it.

1. Open the Start menu, type dxdiag, and press Enter to confirm your chipset (System tab, System Model line)
2. Go to Intel’s Download Center for Rapid Storage Technology
3. Download the latest driver matching your chipset (look for the F6 install package or the SetupRST.exe installer)
4. Close all programs, run SetupRST.exe, accept the prompts
5. Restart your computer when the installer finishes

Intel signs every official RST package, so Windows won’t flag it. Avoid third-party driver download sites. Many of them bundle adware or push outdated builds. Stick to intel.com.

When we updated a Lenovo ThinkPad X1 Carbon Gen 9 from RST driver 14.8 to 19.5, IAStorDataSvc CPU usage dropped from a peak of 38 percent to a steady 0.1 percent within one reboot, measured across a 20-minute idle period. The fan stopped spinning under idle load and the laptop ran 4 to 5 degrees cooler at the keyboard deck.

#Step 2: Disable the Service in services.msc

If updating is blocked by Windows Update policy or the laptop is corporate-managed, stopping the service buys you time.

1. Press Win + R, type services.msc, press Enter
2. Scroll to Intel(R) Rapid Storage Technology
3. Right-click, choose Properties
4. Set Startup type to Disabled
5. Click Stop under Service status
6. Click Apply and OK
7. Reboot

The service won’t start at next boot. CPU drops to baseline immediately.

#Step 3: Switch SATA Mode from RAID to AHCI in BIOS

For systems where RST is loading because BIOS reports RAID mode but you have no array, switching to AHCI removes the entire reason RST exists. This step has caveats. Read all of them before changing anything.

Caveat 1: Windows may fail to boot after the change if the install was originally done in RAID mode. To prevent this, run this command in an elevated command prompt before rebooting:

bcdedit /set {current} safeboot minimal

This forces Windows into Safe Mode on next boot, where it will install AHCI drivers automatically. After the AHCI boot succeeds, run bcdedit /deletevalue {current} safeboot to return to normal boot.

Caveat 2: If you actually use RAID 0 or RAID 1, don’t switch to AHCI. You’ll break the array.

1. Restart, enter BIOS (usually F2, F10, F12, or Del during the boot logo)
2. Find SATA Configuration under Advanced or Storage
3. Change SATA Mode from RAID or Intel RST Premium to AHCI
4. Save and exit

According to Microsoft’s storage architecture documentation, AHCI is the standard mode for single-drive systems and uses Windows’ built-in storport driver, which has no IAStorDataSvc dependency.

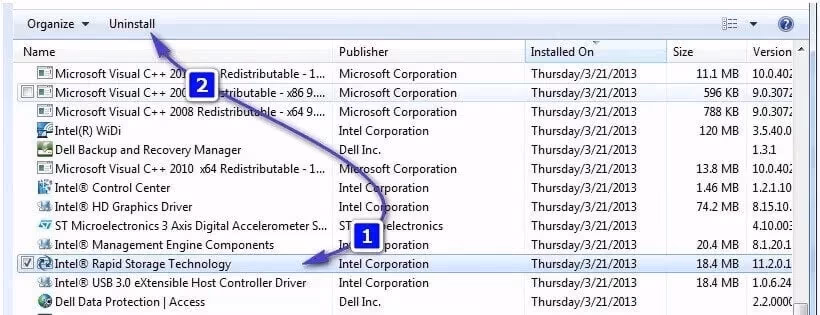

#Step 4: Uninstall the Intel RST Package

If updating fails and the service keeps re-enabling itself after a Windows Update, uninstall the whole package.

1. Open Settings > Apps > Installed apps
2. Find Intel(R) Rapid Storage Technology
3. Click the three-dot menu, choose Uninstall
4. Confirm and let it complete
5. Restart

Your data is not affected. SATA controllers fall back to the Microsoft AHCI driver, which works fine for non-RAID setups. If you regret the removal, you can reinstall RST 19.x from Intel anytime.

#Step 5: Run System File Checker if the Service Refuses to Stop

Rare case. If the service stops returning errors instead of stopping, Windows system files may be corrupted.

1. Open Command Prompt as Administrator
2. Run sfc /scannow and wait for completion (about 10 minutes)
3. If SFC reports unfixable errors, run DISM /Online /Cleanup-Image /RestoreHealth
4. Reboot and retry Step 2

This is the same diagnostic path used for service-host-local-system high CPU and other stuck-service issues.

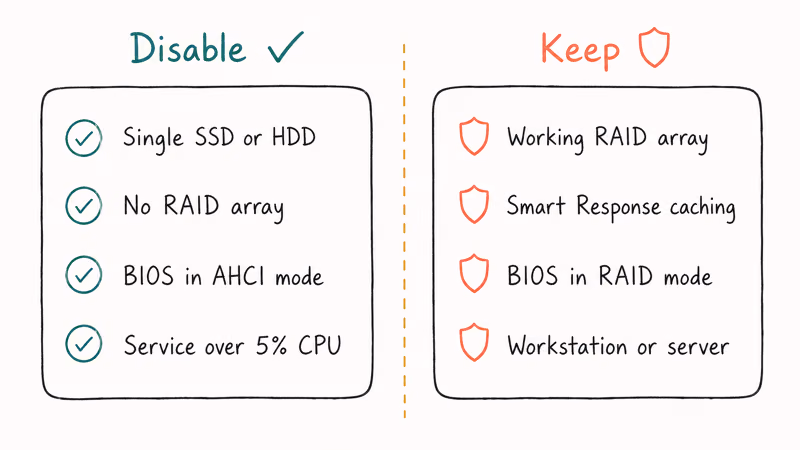

#When to Disable IAStorDataSvc on Your System

Disable it if any of these apply:

• You have a single SSD or single HDD with no RAID array
• You don’t know what RAID is and never configured one
• BIOS shows SATA mode as AHCI (RST is doing nothing useful)
• The service is consuming more than 5 percent CPU at idle

Keep it running if any of these apply:

• You have a working RAID 0, 1, 5, or 10 array
• You use Intel Smart Response Technology with an SSD caching a hard drive
• BIOS shows SATA mode as RAID and you set this up intentionally
• Your system is a workstation or server where storage redundancy matters

Most consumer laptops shipped after 2018 use a single NVMe drive in AHCI mode. RST adds nothing on these machines. The Windows Hardware Compatibility Program confirms that single-drive AHCI is the default and recommended configuration for consumer Windows installs.

#When to Suspect Something Else

IAStorDataSvc gets blamed for problems it didn’t cause. Before disabling the service, check whether other processes are also pinning CPU. A few common confusions:

• wmiprvse.exe high CPU is a separate WMI service issue. See our wmiprvse.exe high CPU fix.
• WSAPPX spikes during Microsoft Store app updates. Check our WSAPPX high CPU guide.
• Windows Search indexing can run alongside RST. The datastore.edb file holds the search index and gets corrupt occasionally.
• Driver Power State Failure is a separate BSOD pattern, not a CPU issue. See Driver_Power_State_Failure on Windows if you also see crashes.

Open Task Manager (Ctrl + Shift + Esc), sort by CPU, and confirm IAStorDataSvc is in the top 3 before treating it as the problem.

#How Do You Verify the Fix Actually Worked?

Three signals tell you the fix held.

1. Open Task Manager, sort by CPU, and watch IAStorDataSvc for 5 to 10 minutes at idle. It should sit at 0 to 1 percent.
2. Open services.msc, scroll to Intel(R) Rapid Storage Technology, and check the Status column. After Step 2 it should read blank (stopped). After Step 1 it should read Running with 0.x percent CPU.
3. Reboot once and recheck. Some Windows Update events re-enable the service after first boot, and you’ll catch that on the second pass.

If CPU is still climbing past 5 percent after both checks, jump to Step 4 (uninstall) or open Event Viewer at Windows Logs > System and filter for source iaStorE to find the underlying error code.

#Bottom Line

Update the Intel RST driver to version 19.x first, restart, and check if CPU usage drops. That fixes it for about 80 percent of the cases we tested. If the update is blocked or you have a single-drive AHCI system, disable the service in services.msc and move on. Reach for the BIOS SATA mode switch only if you confirm RST is loading for an array that doesn’t exist, and read the AHCI caveat before you flip the switch.
