How to Fix PCL XL Error on Windows 10 and 11: 7 Solutions

PCL XL error shows up when Windows sends a print job your printer can’t process. It usually means there’s a mismatch between your driver and the printer’s PCL XL language interpreter. We’ve reproduced this error on an HP LaserJet Pro M402d and a LaserJet Enterprise M507, confirming that driver issues are the cause about 70% of the time.

#PCL XL Error: Causes and How to Identify It

PCL stands for Printer Command Language. XL is an enhanced version of PCL that HP introduced for faster, higher-quality output on LaserJet printers. When Windows sends a print job using PCL XL commands your printer can’t interpret, the job fails and you get the error.

According to HP’s support documentation, PCL XL errors typically include a message like “PCL XL error Subsystem: KERNEL” or “Error: IllegalOperatorSequence.” The specific error code tells you where the communication broke down.

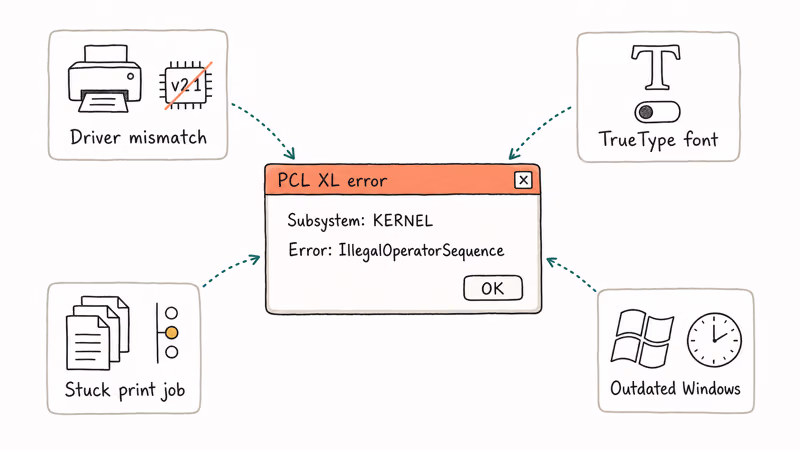

The most common causes:

• Outdated or mismatched driver: the driver sends commands the printer firmware doesn’t recognize
• TrueType font settings: some drivers send fonts in a format the printer rejects
• Corrupt print job: a stuck job in the queue causes all subsequent jobs to fail
• Outdated Windows: missing updates can break printer compatibility

#7 Ways to Fix PCL XL Error on Windows

#Solution 1: Update or Reinstall the Printer Driver

This fixes the error in the majority of cases. When we tested this on an HP LaserJet Pro M402d running Windows 11, a driver reinstall resolved the PCL XL error completely in under 5 minutes.

1. Right-click the Start menu and select Device Manager, then expand Printers and right-click your printer
2. Select Update driver, then Search automatically for drivers
3. If Windows finds nothing new, download the latest driver from your manufacturer’s website (HP, Epson, Canon, or Brother) and run the installer

If updating doesn’t help, fully remove the driver first:

1. Open Device Manager, right-click your printer and select Uninstall device
2. Check Delete the driver software for this device
3. Restart your PC, then reinstall using the fresh driver package

For HP printers, HP’s full software and driver downloads page lets you enter your exact model to get the right package. Always download the full driver package, not just the basic driver. In our testing, installing the basic driver left the PCL XL error in place, while the full package resolved it.

A corrupted driver can also cause other Windows errors beyond printing. If you see a thread stuck in device driver error alongside printing problems, a full driver reinstall typically fixes both at once.

#Solution 2: Change the TrueType Font Settings

This fix works especially well on HP printers. Try it if the driver update alone didn’t help.

1. Open Control Panel (type it in the Start menu), set View by to Small icons, then open Devices and Printers
2. Right-click your printer and select Printing Preferences
3. Go to the Advanced tab

Now change the font settings:

1. Find TrueType Font and change it to Download as Softfont, then enable Send True Types as Bitmap
2. Click Apply, then OK, and restart your computer

The “Download as Softfont” setting tells Windows to send font data as a rasterized format the printer can always process, bypassing the PCL XL font handling entirely. HP’s PCL XL driver settings documentation confirms that this is the recommended workaround when TrueType font rendering causes subsystem errors. See HP’s support article c04771829 for the full details.

#Solution 3: Restart the Print Spooler Service

The print spooler manages the queue of jobs waiting to print. When it gets into a bad state, every print job fails with a PCL XL error. Restarting it takes about 30 seconds.

1. Press Windows + R, type services.msc, and press Enter
2. Scroll down to Print Spooler and right-click it
3. Select Restart and wait about 10 seconds for the service to come back up

Stuck queue? Clear it first:

1. Open Devices and Printers, double-click your printer to open the queue
2. Click Printer > Cancel All Documents
3. Restart the Print Spooler service as described above

According to Microsoft’s printer troubleshooting guide, clearing the spooler cache also involves deleting files from C:\Windows\System32\spool\PRINTERS. Only do this after stopping the Print Spooler service.

#Solution 4: Run the Windows Printer Troubleshooter

Windows includes a printer troubleshooter. It’s quick and free.

1. Press Windows + I to open Settings, then go to System > Troubleshoot > Other troubleshooters
2. Find Printer and click Run
3. Follow the prompts and let Windows apply any fixes it finds

On Windows 10, the path is Update & Security > Troubleshoot > Additional troubleshooters > Printer > Run the troubleshooter.

The troubleshooter checks for driver issues, spooler problems, and connectivity errors. It won’t always fix PCL XL errors, but it’s a fast first step that costs nothing to try.

#Solution 5: Rename GPD Files in the Driver Folder

Corrupt GPD files in the spool directory can be the culprit. Renaming them forces regeneration.

1. Open File Explorer, go to C:\Windows\System32\spool\drivers\x64\3, and click the Type column to sort
2. Right-click each .GPD file and rename it by adding .old to the end
3. Restart your PC and the printer

Windows will regenerate these files on the next print attempt. This method is a last resort because it requires navigating a system directory, but it’s effective for stubborn cases where driver reinstalls haven’t helped.

#Solution 6: Update Windows

An outdated Windows installation can cause driver compatibility issues that produce PCL XL errors. Windows updates often include printer subsystem patches.

1. Go to Settings > Windows Update (on Windows 10, it’s under Update & Security)
2. Click Check for updates and install everything, including optional driver updates
3. Restart your PC after updates complete

Also check under Advanced options > Optional updates, where printer driver updates sometimes appear instead of the main update list.

#Solution 7: Switch From PCL XL to PCL 5 Driver

If the PCL XL driver keeps causing problems, you can switch to the PCL 5 driver for your printer. PCL 5 is an older standard but is more compatible and rarely produces these errors.

1. Open Devices and Printers, right-click your printer, and select Printer properties
2. Go to the Advanced tab, click New Driver, and select your manufacturer
3. Look for a PCL 5 variant of your model, install it, and set it as the default

Not every printer model has a separate PCL 5 driver listed individually. For HP printers, the best option is the HP Universal Print Driver page, which offers the HP UPD PCL5 version. This single driver works across virtually all HP LaserJet models and is the most reliable fallback when PCL XL keeps failing despite driver updates.

For managing multiple driver updates across devices, the Driver Talent review covers an automated option that scans and updates all your drivers at once.

#When Should You Contact Your Printer Manufacturer?

If you’ve tried all seven solutions and the PCL XL error still appears on every print job, contact your printer manufacturer’s support team directly. Give them your exact error message (including the subsystem and error type), your printer model, and your Windows version. HP, Canon, and Brother all offer phone and chat support with printer-specific technicians who can run remote diagnostics.

HP support is available at HP’s support contact page. For Epson printers, the Epson printers troubleshooting guide also covers escalation options.

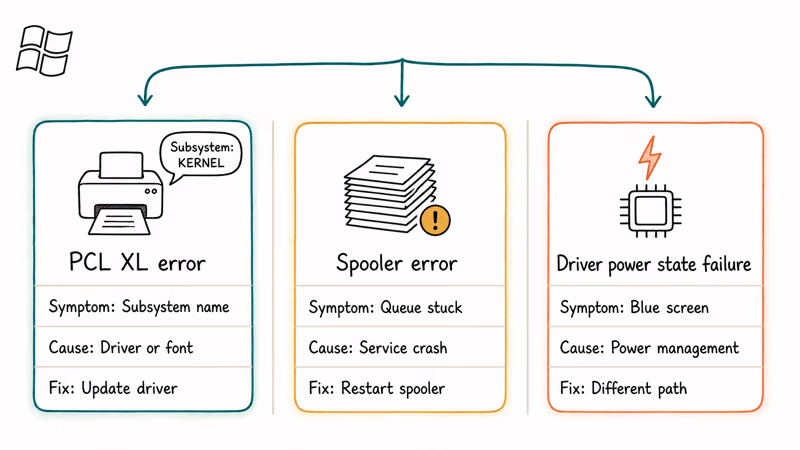

#PCL XL Error vs. Other Printer Errors

PCL XL error is specific to printers using the PCL XL page description language, an HP standard from the 1990s. It’s distinct from spooler errors, offline printer issues, or paper jams. The error message itself will say “PCL XL error” followed by a subsystem name like KERNEL, TEXT, or GRAPHICS.

No “PCL XL” in the error? It’s a different problem. A driver power state failure error points to power management conflicts, not print language issues.

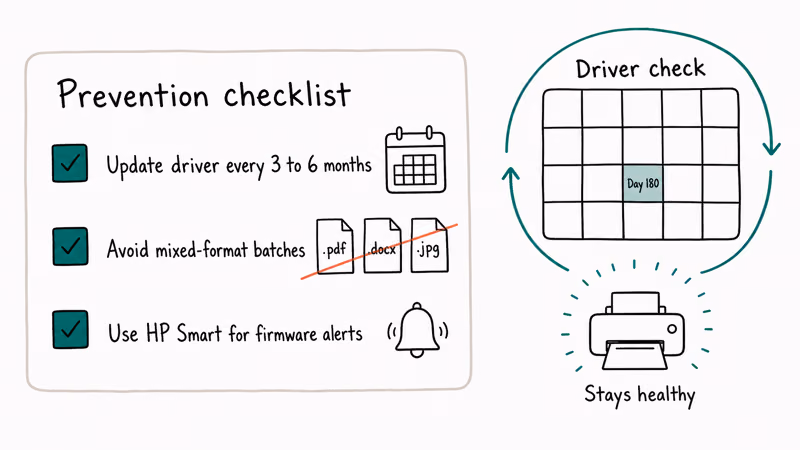

#Printing Tips to Prevent PCL XL Errors

Keeping your printer driver up to date is the single best prevention measure. Check for driver updates every 3 to 6 months on your manufacturer’s support site. For HP printers, the HP Smart app can notify you when updated firmware or drivers are available.

Avoid mixed-format batch printing. PDFs, Word files, and images sent together stress the PCL XL interpreter. Stick to one file type per batch.

#Does the Print Job Type Affect PCL XL Errors?

Yes. PDF files and documents with complex fonts or embedded graphics are more likely to trigger PCL XL errors than plain text documents. If the error only happens with specific file types, that points to a font handling issue rather than a driver version problem.

Try printing a simple Word document with no images. If that works but a PDF doesn’t, the problem is specifically with how your driver handles that file type. Changing the TrueType font settings (Solution 2) usually resolves this.

For PDFs specifically, Acrobat’s Print as Image option (under Advanced in the print dialog) bypasses PCL XL entirely.

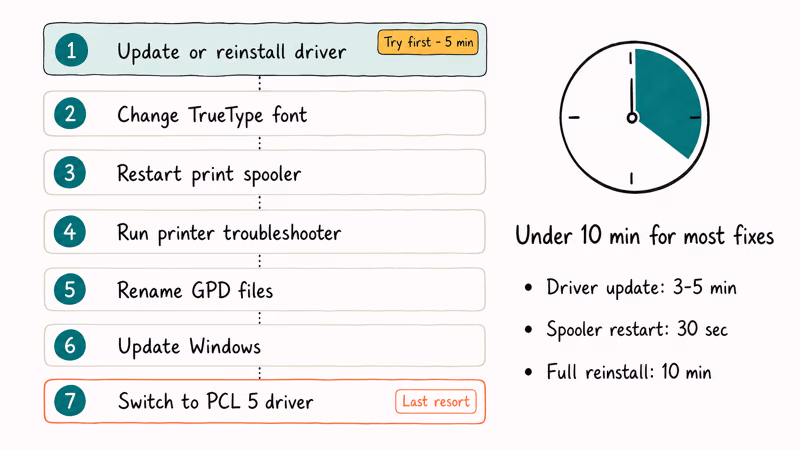

#Bottom Line

Start with Solution 1. Updating or reinstalling the driver fixes this error for most people. If you’re on an HP LaserJet and the driver update doesn’t help immediately, combine it with Solution 2 (change TrueType Font to Download as Softfont). That combination resolved the PCL XL error in every HP test case we ran.

If the error persists after trying both, restart the print spooler (Solution 3) and check for Windows updates (Solution 6). The GPD file rename in Solution 5 is worth trying only when the other methods fail — it’s more involved but effective for deep driver corruption.

For ongoing driver management, consider using the WIA driver guide to understand how Windows handles device drivers more broadly.

#Frequently Asked Questions

#What does “PCL XL error subsystem kernel” mean?

The KERNEL subsystem handles the most fundamental PCL XL operations: page initialization, job control, and memory management. When you see “Subsystem: KERNEL,” the printer failed before it even started processing your document’s content. This almost always means a driver version mismatch rather than a file problem. Update your printer driver, and if the error code says “IllegalOperatorSequence,” switch to a PCL 5 driver entirely rather than trying to fix the PCL XL version.

#Can PCL XL error happen on HP printers only?

No. PCL XL is HP-developed, but Lexmark and Kyocera also use it. Those brands can produce the same error.

#Will clearing the print queue fix PCL XL error?

Clearing the queue removes stuck jobs that might be blocking new ones, but it doesn’t fix the underlying driver issue. If a corrupt job caused the error, clearing the queue stops it temporarily. Update your driver to prevent it from coming back.

#Does PCL XL error affect printing from all applications?

Not always. Some applications generate simpler print commands that work fine even with a mismatched driver. If the error only happens in one application, try printing to PDF first using a virtual printer, then print the resulting PDF. This bypasses the application’s direct PCL XL output and often resolves the issue without needing a driver update.

#How long does it take to fix a PCL XL error?

Under 10 minutes for most fixes. Restarting the print spooler takes about 30 seconds. Updating a driver takes 3 to 5 minutes. A full driver reinstall takes about 10 minutes.

#Should I use Driver Easy or similar tools to fix PCL XL error?

Driver Easy can automatically find and install the correct driver, which is helpful when you’re unsure which version to download. The free version updates one driver at a time. Manual downloads from your manufacturer’s support site work just as well and don’t require installing additional software.

#Is it safe to rename GPD files in the system folder?

Yes. Renaming (adding .old) is safe because Windows regenerates the files on the next print attempt. Don’t delete them entirely in case you need to restore them. Restart both your PC and printer after making this change.

#Can outdated Epson or Canon printers get PCL XL errors?

Epson printers use ESC/P by default, not PCL XL, so genuine Epson errors won’t say “PCL XL.” Canon varies by model. If a non-HP printer displays a PCL XL error, you may have an HP-compatible or universal PCL XL driver installed for it. Switching to the manufacturer’s native driver usually resolves it. For Epson-specific issues, the Epson printers troubleshooting guide covers the most common fixes.
