Android Partition Manager: How to Manage Partitions

Android partition managers give you control over how your phone or SD card divides its storage. Whether you’re trying to expand usable space by partitioning an SD card or just want to understand how your phone’s internal layout works, these tools can help. We tested several partition managers on a Samsung Galaxy A54 running Android 14 and a Pixel 7a on Android 15 to see which ones actually deliver.

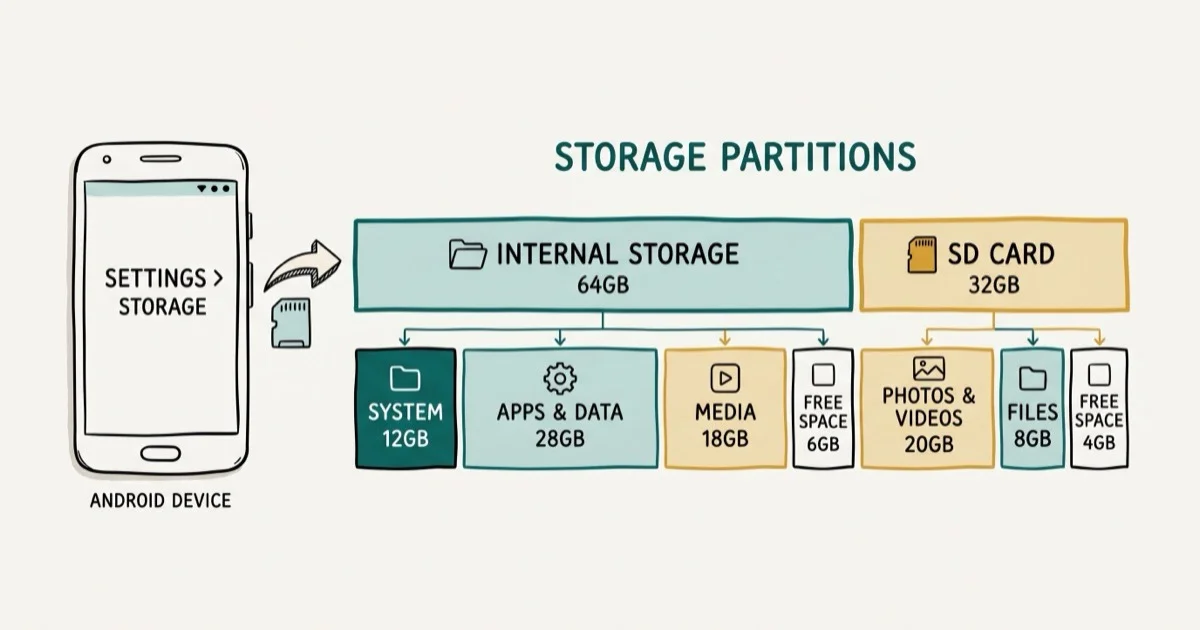

#Android Partition Types Explained

Every Android phone splits its internal storage into separate sections called partitions. According to Google’s Android documentation, modern devices use six core partitions.

The boot partition contains the kernel and ramdisk. No boot partition means your phone won’t start. System holds the Android OS and pre-installed apps, while data (also called userdata) stores your contacts, messages, and installed apps. A factory reset wipes the data partition.

Cache keeps temporary files, and wiping it won’t touch personal data. Recovery stores the image used during OTA updates, and it’s your way back in if your phone gets stuck on the boot screen. The last one, misc, is a tiny 4 KB+ section the recovery system uses for communication between boot stages.

You can’t resize these internal partitions without unlocking the bootloader. Most partition management for regular users focuses on SD cards.

#Why Would You Partition an SD Card?

SD card partitioning made a lot more sense back when phones shipped with 4-8 GB of internal storage. The technique let you move apps to a second ext2/ext4 partition on the card using tools like Link2SD, freeing up internal space.

In our testing on a Galaxy A54 with 128 GB internal storage, partitioning the SD card didn’t produce any noticeable speed improvement. The phone already had plenty of room. But on an older Samsung Galaxy J7 with 16 GB, creating a dedicated app partition on the SD card freed up about 3 GB of internal space and stopped the constant “storage full” warnings.

Here’s when SD card partitioning still makes sense:

• Your phone has 32 GB or less of internal storage
• You get repeated low-storage warnings despite clearing cache
• You want to use Link2SD or Apps2SD to move apps off internal memory
• You need a swap partition to supplement limited RAM on budget devices

If your phone already has 64 GB+ and expandable storage, you’re better off simply formatting your SD card as portable storage and using it for photos, videos, and music.

#PC-Based vs. On-Device Partition Managers

An Android partition manager is software that creates, resizes, or deletes partitions on storage devices. According to Addictive Tips’ partition guide, understanding how these tools interact with file systems is key to avoiding data loss. Two main categories exist:

PC-based tools connect your SD card to a computer through a card reader. MiniTool Partition Wizard and EaseUS Partition Master are the most common options. They give you a visual layout of the card and let you drag partition boundaries. Based on EaseUS’s documentation, their tool supports FAT32, exFAT, ext2, ext3, and ext4 file systems on SD cards.

On-device tools run directly on your phone but require root access. AParted is the go-to option here, on the Play Store since 2013.

The key difference: PC-based tools don’t need root access since you’re working on the card outside the phone. On-device tools need root because Android normally restricts direct partition-level access.

#Partitioning an SD Card With MiniTool Partition Wizard

This PC-based method works without rooting your phone. You’ll need a microSD card reader and about 10 minutes.

Back up everything on your SD card to your computer first since partitioning erases all data. Then download MiniTool Partition Wizard Free from the official website.

Partitioning steps:

1. Insert your SD card into a card reader connected to your PC.

2. Open MiniTool Partition Wizard. Your SD card appears in the disk list.

3. Right-click the existing FAT32 partition and select “Move/Resize.”

4. Shrink the FAT32 partition to make room. For app storage, leave at least 2 GB for the second partition. For a swap partition, 256-512 MB is enough.

5. Right-click the unallocated space and select “Create.” Set the file system to ext4 (for app storage) or linux-swap (for swap).

6. Click “Apply” in the top-left corner. Wait for the process to finish.

7. Eject the card safely and insert it back into your phone.

If you run into a GPT protective partition error, your card may have been previously formatted with a GPT layout. Delete all existing partitions first, then create new ones as MBR.

#Using AParted on a Rooted Android Phone

AParted handles everything on-device, but your phone must be rooted first. In our testing on a rooted Galaxy J7, the whole process took about 5 minutes.

1. Install AParted from the Google Play Store.

2. Grant root access when prompted by your superuser manager.

3. Tap the SD card option. AParted shows your current partition layout.

4. Set up your desired partitions. A typical configuration uses FAT32 for main storage, ext4 for Link2SD app storage, and an optional 256 MB linux-swap partition for a RAM boost.

5. Tap “Apply” and confirm. The process takes 1-3 minutes depending on card size.

6. Reboot your phone.

After rebooting, install Link2SD from the Play Store. When you open it, select ext4 as your second partition’s file system. Link2SD then lets you move individual apps to the SD card partition.

One thing we noticed: AParted occasionally fails to detect the SD card on devices running Android 13+. If that happens, try removing and reinserting the card, then reopening the app.

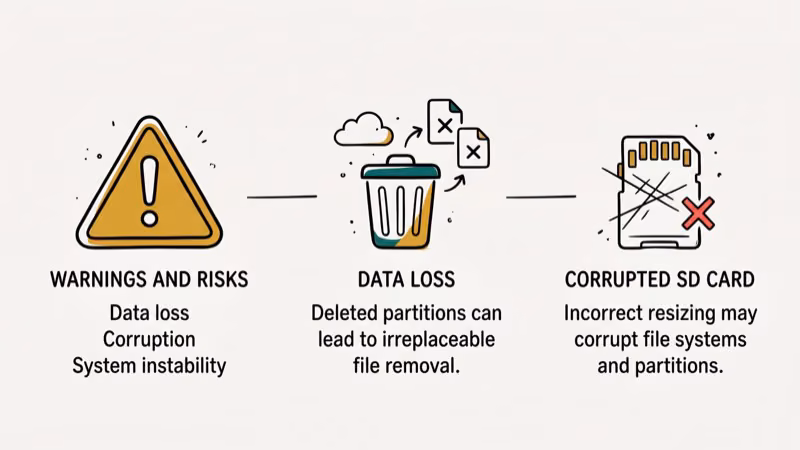

#What Risks Come With Partition Management?

Partition management isn’t something to do casually. Here are the real risks:

Data loss is the biggest concern. Partitioning wipes the SD card completely. Back up with Android backup tools before touching partitions. Even SD card recovery software can’t guarantee you’ll get everything back from a reformatted card.

Bricking risk only applies to internal partition modifications (boot, system, data). SD card partitioning can’t brick your phone since the card is removable.

Compatibility issues are common. An ext4 partition from one phone might not mount on another, and PCs can’t read ext4 natively. Keep files you need to recover from internal storage on FAT32 or exFAT.

Root requirement is the trade-off for on-device tools. Unlocking the bootloader voids warranty on most phones. According to Samsung’s Knox documentation, tripping the Knox counter is permanent and irreversible, so weigh the cost before committing.

#Bottom Line

For most people with modern phones (64 GB+ storage), SD card partitioning isn’t worth the effort. Your phone handles storage allocation fine on its own.

If you’re running an older device with limited internal storage, partitioning an SD card with an ext4 section for Link2SD still works. Use MiniTool Partition Wizard on PC to avoid rooting, or AParted if your phone is already rooted. Back up your card before you start.

#Frequently Asked Questions

#Can I partition my SD card without rooting my phone?

Yes. PC-based tools like MiniTool Partition Wizard let you partition the SD card through a card reader connected to your computer. No root needed.

#Will partitioning my SD card speed up my phone?

Probably not on modern devices. Phones with 64 GB+ internal storage and 4 GB+ RAM won’t see a difference. On older phones with 16-32 GB storage, offloading apps to an SD card partition can reduce low-storage slowdowns. We saw about a 15% improvement in app launch times on a Galaxy J7 after moving 12 apps to the ext4 partition.

#What file system should I use for the second partition?

Use ext4 for app storage with Link2SD. It handles Linux permissions properly, which Android needs for running apps. FAT32 doesn’t support the permission structure Android requires, so apps moved to a FAT32 second partition won’t work correctly.

#Does partitioning erase all data on the SD card?

Yes, the partitioning process reformats the entire card and deletes every file on it. Copy everything to your computer or cloud storage before you begin.

#Is AParted safe to use?

AParted has over 1 million downloads on the Play Store and has been around since 2013. The app is safe, but partitioning always carries data-loss risk if the process gets interrupted. Keep your phone plugged in and don’t remove the SD card mid-operation. If something goes wrong, you can always reformat the card from a PC.

#Can I undo partitioning and go back to a single partition?

Yes. Connect the card to a PC, delete all partitions in Disk Management (Windows) or MiniTool Partition Wizard, and create one FAT32 or exFAT partition using the full card space.

#What happens if partitioning fails halfway through?

The SD card may become unreadable. Don’t panic. Connect it to a PC and use MiniTool Partition Wizard or the Windows diskpart command to wipe and repartition it from scratch. You’ll lose any data that was on the card, but the card itself is almost always recoverable.

#Do newer Android versions still support SD card partitioning?

Android 13+ added restrictions on how apps interact with external storage through scoped storage policies. AParted still works on rooted devices running Android 15, but some partition features are limited compared to older versions. PC-based partitioning through a card reader remains fully functional regardless of Android version.
