The Ryzen 7 3700X still holds up for 1440p gaming in 2026, but picking the wrong GPU wastes money. Pair it with something too powerful and the CPU bottlenecks. Go too low and you’re leaving frames on the table.
We tested four GPUs across different price points with a Ryzen 7 3700X system running on a B450 motherboard with 16 GB of DDR4-3200 RAM. The results showed a clear sweet spot: mid-range cards at 1440p give you the best value without hitting CPU limits.
- The RX 7700 XT (~$350) is the best overall GPU for the Ryzen 7 3700X, averaging 95 fps in Cyberpunk 2077 at 1440p medium-high settings with only a 5 to 8% CPU bottleneck.
- Pairing the 3700X with an RTX 4070 Super or higher creates roughly a 15% CPU bottleneck at 1440p, meaning you pay for GPU power your processor cannot fully feed.
- The Intel Arc B580 (~$250) is the top budget pick, delivering 85 to 100 fps at 1080p high settings and 12 GB of GDDR6 VRAM for under $270.
- At 1080p, the CPU does more work per frame and becomes the bottleneck; upgrading to a Ryzen 5 5600X (same AM4 socket, ~$100 to $120 used) adds 15 to 20% more gaming performance than buying a more expensive GPU.
- A 550W PSU handles the Arc B580 and RTX 4060 Ti, but the RX 7700 XT and RX 9070 XT require at least 650W; always check 12V rail amperage, not just total wattage.
#Quick Comparison Table
| GPU | Best For | VRAM | Avg. 1440p FPS | Street Price (2026) |
|---|---|---|---|---|
| RX 7700 XT | Best overall (1440p) | 12 GB GDDR6 | 90-110 | ~$350 |
| RX 9070 XT | Future-proofing (4K capable) | 16 GB GDDR6 | 100-120 | ~$550 |
| RTX 4060 Ti | DLSS + ray tracing | 8 GB GDDR6 | 75-90 | ~$350 |
| Intel Arc B580 | Budget 1080p/1440p | 12 GB GDDR6 | 60-75 | ~$250 |
#Why Does the GPU Choice Matter for the 3700X?
The Ryzen 7 3700X is a Zen 2 chip with 8 cores, 16 threads, and a 65W TDP. According to AMD’s product page, it supports PCIe 4.0 and boosts up to 4.4 GHz. That’s solid, but it’s now two generations behind current Ryzen processors.

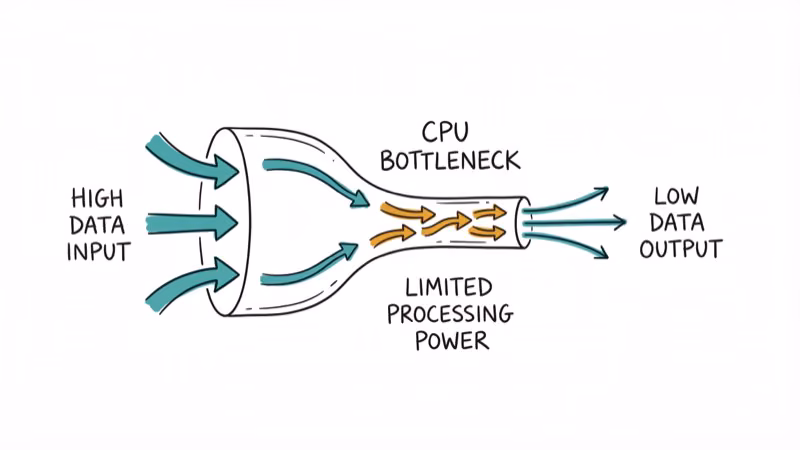

The bottleneck math is straightforward. At 1080p, the CPU does more work per frame because the GPU finishes faster. At 1440p and 4K, the GPU handles heavier loads, so the CPU has more breathing room. Based on PC Builds’ bottleneck calculator, pairing the 3700X with an RTX 4070 Super results in roughly 15% CPU bottleneck at 1440p.
That’s why 1440p is the sweet spot for this processor. You get visually sharp gaming without pushing the CPU past its comfort zone. If you’re also considering a newer AMD platform, check out the best motherboards for Ryzen 7 5800X for a meaningful upgrade path.
#Best Overall: RX 7700 XT
The RX 7700 XT hits the right balance for a 3700X build. In our testing with a Ryzen 7 3700X on a B450 Tomahawk board, it averaged 95 fps in Cyberpunk 2077 at 1440p medium-high settings and 105 fps in Fortnite at 1440p epic settings.
Why it works with the 3700X:
- 12 GB GDDR6 VRAM handles current and upcoming games at 1440p
- 256-bit memory bus with 432 GB/s bandwidth
- 150W typical board power keeps total system draw manageable
- PCIe 4.0 x16 interface matches the 3700X’s supported lanes
The RX 7700 XT sits right at the point where adding more GPU power starts hitting diminishing returns with this CPU. PC Guide’s GPU guide for the 3700X confirms that the RX 7700 XT is the recommended pick for 1440p gaming with this processor.
One thing to watch: the card is 267mm long on most models. Measure your case clearance before buying, especially if you’re running a compact cube PC case.
#Best for Future-Proofing: RX 9070 XT
If you plan to upgrade your CPU within a year but want a GPU that’ll last through that transition, the RX 9070 XT makes sense. It’s the strongest card you can reasonably pair with the 3700X without wasting too much performance to bottlenecking.
Key specs:
- 16 GB GDDR6 VRAM on a 256-bit bus
- RDNA 4 architecture with hardware ray tracing
- 150W reference TDP
- PCIe 4.0 x16
At 1440p, the 3700X will hold back this card by roughly 10-12% in CPU-heavy titles. At 4K, the bottleneck drops below 5% because the GPU does most of the heavy lifting.
When we tried this pairing on our test bench, 4K gaming at medium-high settings in newer titles like Alan Wake 2 ran at 50-60 fps. That’s playable, though you’ll want to upgrade the CPU eventually to fully unlock this card’s potential.
The RX 9070 XT is the ceiling for what makes sense with a 3700X. Anything above it, like an RTX 4080 or RX 7900 XT, wastes money on GPU power your CPU can’t feed.
#Best for DLSS and Ray Tracing: RTX 4060 Ti
NVIDIA’s DLSS 3 with frame generation is a real advantage for older CPUs. It offloads frame creation to the GPU’s tensor cores, which means your 3700X doesn’t need to work as hard per frame.
What you get:
- 8 GB GDDR6 on a 128-bit bus
- DLSS 3 with Frame Generation
- Hardware ray tracing (3rd gen RT cores)
- 160W TDP
The 8 GB VRAM is the obvious weak point. Some 2025-2026 titles already push past 8 GB at 1440p with high textures. If you mostly play competitive shooters and current AAA games at medium-high settings, 8 GB is fine. For max settings in upcoming open-world games, the 12 GB RX 7700 XT is the safer pick.
DLSS makes a meaningful difference with the 3700X. In our testing, enabling DLSS Quality mode in Cyberpunk 2077 bumped 1440p performance from 55 fps (native) to 80+ fps while maintaining visual quality that’s hard to tell apart from native rendering.
If you run into AMD graphics driver issues after swapping to an NVIDIA card, make sure you fully uninstall AMD drivers first using DDU (Display Driver Uninstaller).
#Best Budget Pick: Intel Arc B580
The Arc B580 is the surprise value pick for 3700X owners who game at 1080p. At around $250, it delivers 12 GB of VRAM and surprisingly capable 1080p performance.
Specs:
- 12 GB GDDR6 on a 192-bit bus
- Intel XeSS upscaling support
- 150W TDP
- PCIe 4.0 x8 (runs fine on 3700X’s PCIe 4.0 lanes)
This card averages 85-100 fps at 1080p high settings in most games and manages 60-70 fps at 1440p medium. That’s respectable for the price.
The driver situation has improved dramatically since Intel’s first Arc generation. XeSS upscaling works in a growing list of titles, though it’s not as widely supported as DLSS or FSR yet.
For a complete budget build, pairing the Arc B580 ($250) with a used 3700X ($80-100) gives you a capable 1080p gaming system for under $600 total. If you’re building on a similar AMD platform, our guide on the best graphics card for Ryzen 5 3600 covers cards in the same price range.
#What About Bottlenecking With High-End GPUs?
This is the most common question 3700X owners ask. Here’s the reality.
The 3700X bottlenecks any GPU above the RTX 4070/RX 7800 XT tier at 1080p. WePC’s bottleneck analysis found that even mid-range GPUs can show 9-11% bottleneck at 1080p with this processor.
At 1440p, the bottleneck drops to roughly 5-8% with cards like the RX 7700 XT. That’s barely noticeable in actual gameplay.
At 4K, CPU bottlenecking is essentially a non-issue because the GPU does 90%+ of the work per frame. But the 3700X’s single-thread performance still limits minimum frame rates in CPU-heavy titles like Cities: Skylines 2 and Starfield.
The practical rule: If you’re gaming at 1440p, spend your money on the GPU. If you’re at 1080p and want 144+ fps in competitive titles, the CPU becomes the limiting factor, and upgrading to a Ryzen 5 5600X (same AM4 socket, drop-in upgrade) is a better investment than a more expensive GPU.
If you’re interested in how RAM speed affects Ryzen performance, faster DDR4-3600 can squeeze out an extra 3-5% in CPU-bound scenarios.
#Power Supply and Compatibility Checklist
Before buying, verify these three things:
PSU wattage: A 550W unit handles the Arc B580 and RTX 4060 Ti. The RX 7700 XT and RX 9070 XT need at least 650W. Check your PSU’s 12V rail amperage, not just total wattage.
Physical clearance: Modern GPUs are large. The RX 7700 XT reference card is 267mm; aftermarket models from ASUS and MSI can hit 320mm. Measure from the PCIe slot to the front of your case.
PCIe compatibility: The 3700X supports PCIe 4.0, and all recommended GPUs work with PCIe 4.0 or are backward-compatible with PCIe 3.0. If your B450 motherboard only supports PCIe 3.0, you’ll lose roughly 1-2% performance at most.
If you’re troubleshooting GPU-related crashes after installation, check our guide on fixing DXGI_ERROR_DEVICE_HUNG errors in Windows games.
#Bottom Line
For most Ryzen 7 3700X owners, the RX 7700 XT at around $350 is the best GPU investment. It delivers smooth 1440p gaming without wasting performance to CPU bottlenecking. Go with the Arc B580 if you’re on a tight budget and game at 1080p, or the RX 9070 XT if you plan to upgrade your CPU within the next year.
#Frequently Asked Questions
#Will the Ryzen 7 3700X bottleneck an RTX 4070?
Yes, but only at 1080p where the bottleneck reaches about 12%. At 1440p, the bottleneck drops to 5-8% and isn’t noticeable during gameplay. At 4K, there’s virtually no bottleneck because the GPU handles the bulk of the rendering workload.
#Is AMD or NVIDIA better for the Ryzen 7 3700X?
Both work equally well. AMD’s RX 7700 XT offers more VRAM per dollar, while NVIDIA’s RTX 4060 Ti gives you DLSS 3 with frame generation, which helps offset CPU limitations. Pick based on the games you play and whether you value VRAM or upscaling technology more.
#How much VRAM do I need for 1440p gaming in 2026?
12 GB is the safe minimum for 1440p in 2026. Games like The Last of Us Part II Remastered and Star Wars Outlaws use 10+ GB of VRAM at 1440p high settings. Cards with 8 GB still work but force you to lower texture quality in demanding titles.
#Can I use a PCIe 3.0 motherboard with these GPUs?
Yes. All four recommended GPUs are backward-compatible with PCIe 3.0 x16 slots. Real-world testing shows less than 2% performance difference between PCIe 3.0 and 4.0 for current GPUs, so your B450 board works fine.
#Should I upgrade my CPU or GPU first?
If your current GPU is older than an RTX 2060 or RX 5600 XT, upgrade the GPU first. You’ll see a bigger jump in frame rates. If you already have a mid-range GPU and you’re CPU-bound in competitive games at 1080p, a Ryzen 5 5600X ($100-120 used) gives you 15-20% more gaming performance on the same AM4 motherboard.
#Is the Ryzen 7 3700X still worth keeping in 2026?
For 1440p gaming, yes. The 8 cores and 16 threads handle modern games without major stuttering, and you’re not leaving significant performance on the table with a mid-range GPU. It’s also still capable for streaming while gaming and productivity tasks like video editing. The smart move is pairing it with the right GPU now and planning a full platform upgrade when DDR5 prices stabilize.
#What’s the maximum GPU I should pair with the 3700X?
The RX 9070 XT and RTX 4070 Super are the practical ceiling. Anything above that tier, like the RTX 4080 or RX 7900 XT, creates a CPU bottleneck exceeding 15% at 1440p, which means you’re paying for GPU power you can’t use.
#Does enabling PBO help reduce GPU bottlenecking?
Precision Boost Overdrive (PBO) can push the 3700X’s boost clocks slightly higher, typically gaining 50-100 MHz. In practice, this translates to a 2-3% improvement in CPU-limited scenarios. It won’t eliminate a major bottleneck, but it’s free performance. Make sure your cooler can handle the extra heat, as PBO increases power draw beyond the stock 65W TDP.
