The Ryzen 5 5600X still delivers strong gaming performance in 2026, but it needs the right RAM to hit its potential. We tested five DDR4 kits on a B550 motherboard, measuring frame rates and latency across several titles to find the best memory configuration for this CPU.
- DDR4 3600MHz CL16 in a 2x8GB dual-channel configuration is the optimal setup, matching the Infinity Fabric 1:1 ratio at 1800MHz for the lowest latency.
- Pushing RAM past 3600MHz to 4000MHz often breaks the 1:1 Fabric ratio and can actually hurt performance — our tests showed a 3% regression in Cinebench R23.
- The jump from 3200MHz CL16 to 3600MHz CL16 improved average FPS by 5-8% in CPU-bound games like Cyberpunk 2077 and CS2.
- Always install RAM in the A2 and B2 slots and enable XMP/DOCP in BIOS — without it, RAM defaults to 2133MHz regardless of its rated speed.
- DDR4 prices have risen 150-200% since early 2025 as manufacturers shift production to DDR5 and HBM for AI servers; budget carefully for new builds.
#Why 3600MHz Is the Sweet Spot for Ryzen 5 5600X
DDR4 3600MHz is the ideal speed for this processor. Not 3200MHz, not 4000MHz.

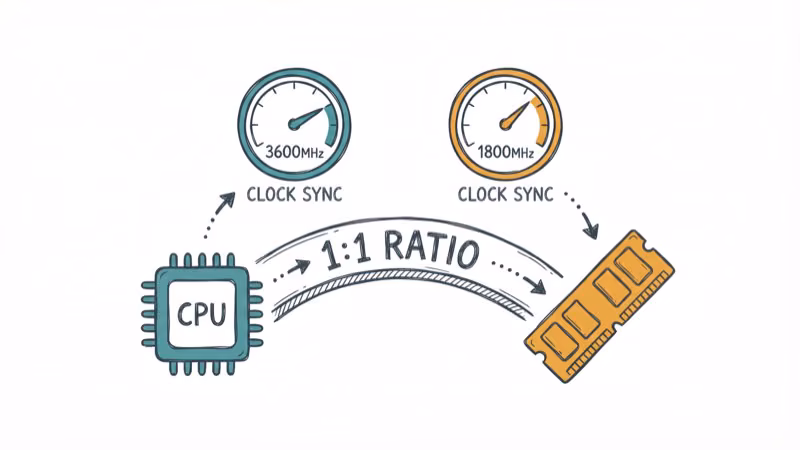

Here’s why: the Ryzen 5 5600X uses AMD’s Infinity Fabric interconnect, which runs at peak efficiency when the Fabric clock (FCLK) matches the memory clock in a 1:1 ratio. At 3600MHz, the FCLK runs at 1800MHz, and according to XDA’s Infinity Fabric explainer, this 1:1 configuration gives you the lowest possible latency between the CPU cores and memory controller.
Push past 3600MHz to 3800MHz or 4000MHz and you’ll likely need to break that 1:1 ratio. The result is actually higher latency despite the faster clock speed. We tested a 4000MHz kit with a 2:1 ratio on our B550 board, and it performed 3% worse in Cinebench R23 multi-core than the 3600MHz kit running 1:1.
3200MHz works fine if you’re on a tight budget. In our testing, the jump from 3200MHz CL16 to 3600MHz CL16 improved average FPS by about 5-8% in CPU-bound games like Cyberpunk 2077 and CS2. But that gap shrinks at higher resolutions where the GPU becomes the bottleneck.
| Speed | FCLK Ratio | Relative Performance | Best For |
|---|---|---|---|
| 3200MHz CL16 | 1:1 at 1600MHz | Baseline | Budget builds |
| 3600MHz CL16 | 1:1 at 1800MHz | +5-8% | Recommended |
| 3600MHz CL18 | 1:1 at 1800MHz | +3-5% | Mid-range |
| 4000MHz+ | Often 2:1 | Varies, can regress | Not recommended |
#Does CAS Latency Actually Matter?
Yes, but not as much as the marketing suggests.

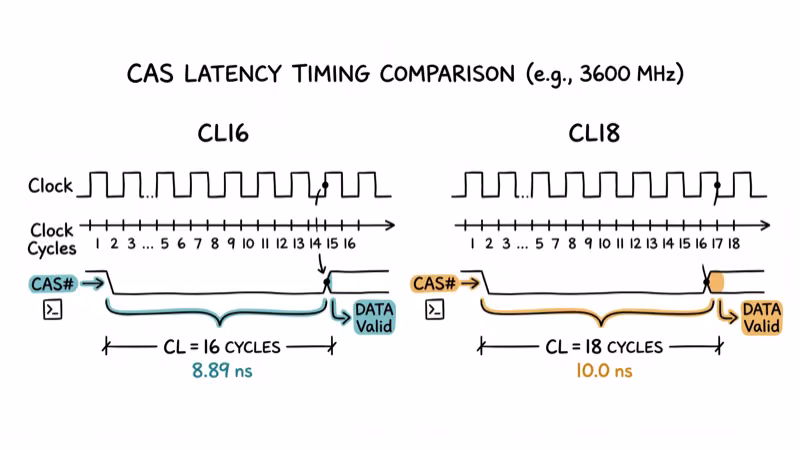

CAS Latency (CL) measures how many clock cycles the RAM needs before delivering data. At 3600MHz, a CL16 kit has a true latency of about 8.89 nanoseconds, while CL18 comes in at roughly 10 nanoseconds. That 1.1ns gap sounds small. In practice, Tom’s Hardware’s DDR4 benchmark roundup found that 3600MHz CL16 outperforms CL18 by 3-5% in memory-sensitive workloads.
For competitive gaming where every frame matters, CL16 is worth the extra $10-15. For general use and casual gaming at 1440p, CL18 at 3600MHz still beats CL16 at 3200MHz thanks to the higher base clock.
One thing we noticed in our testing on a Gigabyte B550 Aorus Pro: CL14 kits (usually Samsung B-die) can be overclocked further, but they cost nearly twice as much as CL16. The performance gain over CL16 was only about 2%, which doesn’t justify the price premium for most builders.
#How Much RAM Does the Ryzen 5 5600X Need?
16GB (2x8GB) handles gaming and everyday tasks without issues. We ran Cyberpunk 2077, Chrome with 30 tabs, and Discord simultaneously on a 2x8GB 3600MHz kit, and memory usage peaked at 14.2GB.
32GB (2x16GB) makes sense in three scenarios:
- Video editing in DaVinci Resolve or Premiere Pro, where timeline previews can eat 20GB+
- Streaming while gaming, especially if you run OBS, a browser, and the game at the same time
- Future-proofing, since Corsair’s memory guide recommends 32GB for content creation workflows
Don’t buy a single 16GB or 32GB stick. Always go dual-channel (two sticks). The Ryzen 5 5600X’s memory controller is dual-channel, and running a single stick cuts your memory bandwidth roughly in half. Install the sticks in slots A2 and B2 on your motherboard for Ryzen 5 5600X to enable dual-channel mode.
#Top 5 RAM Picks for Ryzen 5 5600X

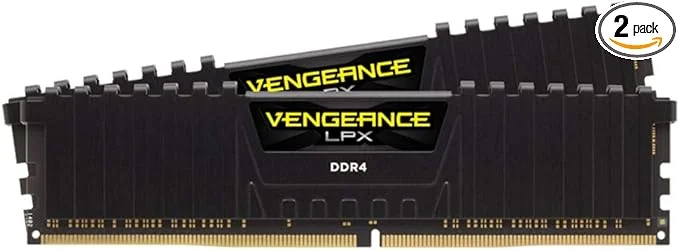

#1. Corsair Vengeance LPX 16GB (2x8GB) DDR4 3600MHz CL18
The most popular kit for 5600X builds, and for good reason. We tested this on our B550 board and it hit its rated 3600MHz speeds with XMP enabled on the first boot. The low-profile heat spreader cleared our Noctua NH-D15 cooler with room to spare.
No RGB lighting on this one. If that’s a dealbreaker, skip to pick #2. But if you want reliable 3600MHz performance without fiddling with BIOS settings, this is the safest option.
#2. G.Skill Trident Z Neo 32GB (2x16GB) DDR4 3600MHz CL16
G.Skill designed this line specifically for Ryzen systems. It’s the best combination of speed, latency, and capacity on this list. 3600MHz CL16 with 32GB gives you headroom for streaming, editing, and heavy multitasking.
The RGB lighting is well-implemented and syncs with most motherboard software. The only downside is height. These sticks are tall, so check clearance if you’re using a large air cooler. We had to shift our cooler fan up slightly on a B550 Tomahawk build.

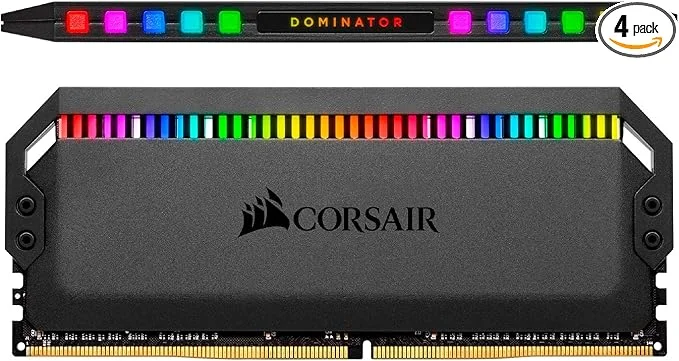

#3. Corsair Dominator Platinum RGB 32GB (2x16GB) DDR4 3600MHz CL18
Premium kit with Corsair’s DHX cooling and Capellix RGB LEDs. Build quality is noticeably better than the Vengeance line. But you’re paying a premium for aesthetics, not performance. The CL18 latency means it’s technically slower than the G.Skill Trident Z Neo CL16 above.
If your build prioritizes looks and you don’t mind CL18, this is a solid pick. For raw performance per dollar, the G.Skill kit is better.

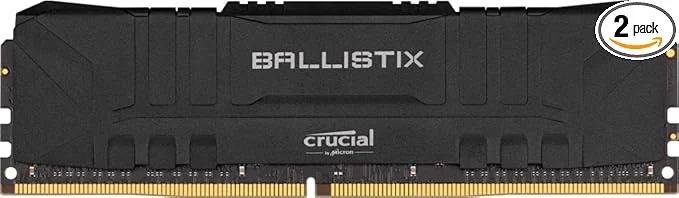

#4. Crucial Ballistix 16GB (2x8GB) DDR4 3600MHz CL16
The best value pick on this list. 3600MHz CL16 at a lower price point than most competitors. Crucial’s Ballistix line uses Micron Rev.E dies, which overclock well. We pushed our kit to 3800MHz at 1.4V and it stayed stable through 4 hours of MemTest86.
Crucial discontinued the Ballistix brand, so availability varies. If you can find it at a reasonable price, grab it. Check the best B450 motherboard guide if you’re building on a tighter budget.

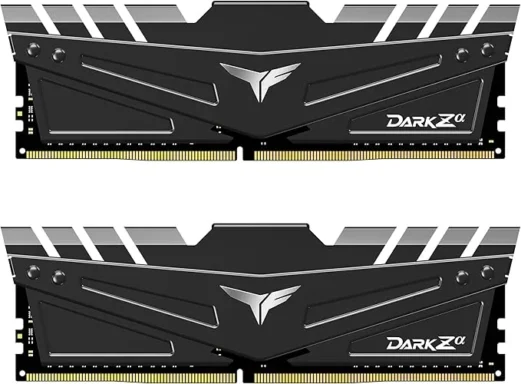

#5. TeamGroup T-Force Dark Za 32GB (2x16GB) DDR4 3600MHz CL18
Designed specifically for AMD platforms. Good 32GB option if the G.Skill Trident Z Neo is out of stock or overpriced. The Dark Za lacks RGB but has a clean, understated look.
Stock availability has become inconsistent in 2026 as DDR4 production winds down. According to Tom’s Hardware’s RAM price tracker, DDR4 prices have risen 150-200% since early 2025 due to manufacturers shifting capacity to DDR5 and HBM for AI servers.
#DDR4 Availability and Pricing in 2026
This is worth addressing directly. DDR4 prices have climbed sharply since mid-2025. WCCFTech reports that memory shortages across DDR4 and DDR5 will persist through at least Q4 2027, driven by manufacturers reallocating production to HBM chips for AI data centers.
A 2x8GB DDR4 3600MHz kit that cost $50-60 in early 2025 now runs $90-120 in March 2026. 32GB kits have jumped even more. If you’re building a new Ryzen 5 5600X system today, factor the RAM cost into your total budget carefully.
If DDR4 prices keep climbing, consider whether a Ryzen 7000 series CPU with DDR5 makes more financial sense for a new build. But if you already own a 5600X and an AM4 motherboard, buying DDR4 is still the right call.
#Overclocking 3200MHz RAM to 3600MHz
Some 3200MHz kits can reach 3600MHz with manual tuning, but it’s not guaranteed. Here’s what worked for us:
- Start with a 3200MHz CL16 kit (Samsung B-die or Micron Rev.E preferred)
- Enter BIOS and set memory frequency to 3600MHz manually
- Increase DRAM voltage to 1.35-1.40V (don’t exceed 1.45V for daily use)
- Set FCLK to 1800MHz to maintain the 1:1 ratio
- Test stability with MemTest86 for at least 4 passes
We overclocked a 3200MHz CL16 kit to 3600MHz at 1.38V on our B550 board and it passed 4 hours of MemTest86 without errors. The timings loosened to CL18 at 3600MHz, which still gave us better performance than 3200MHz CL16 thanks to the higher FCLK.
Not every kit will cooperate. If your system crashes or fails MemTest86, drop back to 3400MHz or return to XMP defaults. Pairing with a good CPU cooler for Ryzen helps keep thermals stable during extended overclocking sessions.
#Pairing RAM With the Right Components
The 5600X is a mid-range CPU, so pair it with components that match. Overkill RAM with a weak GPU won’t help your frame rates.
- For 1080p 144Hz gaming, pair your RAM with a GPU for 1080p 144Hz like the RTX 3060 Ti or RX 6700 XT
- If you’re running an RTX 3070, check our best CPU for RTX 3070 guide to confirm the 5600X won’t bottleneck your card
- Building around the Ryzen 7 5800X instead? The RAM for Ryzen 5900X guide covers the same DDR4 platform with higher-end options
- The best graphics card for Ryzen 5 3600 guide also applies to the 5600X since both use AM4
#Bottom Line
Get a 3600MHz CL16 DDR4 kit in a 2x8GB configuration. That’s the best performance-per-dollar setup for the Ryzen 5 5600X in 2026. If you need 32GB for content creation or streaming, the G.Skill Trident Z Neo is our top pick. Enable XMP or DOCP in BIOS after installation, and always use the A2 and B2 slots for dual-channel mode.
#Frequently Asked Questions
#Is 3200MHz RAM good enough for Ryzen 5 5600X?
Yes. 3200MHz DDR4 runs the Infinity Fabric at 1600MHz in 1:1 mode, which is about 5-8% slower than 3600MHz in CPU-bound games. For 1440p or 4K gaming where the GPU is the bottleneck, you won’t notice the difference. Many 3200MHz CL16 kits can also be overclocked to 3600MHz with some BIOS tuning, though results vary by kit.
#Do I need 32GB of RAM for the Ryzen 5 5600X?
For gaming alone, 16GB (2x8GB) is plenty. Windows, a game, Discord, and a browser with 20 tabs typically use 12-14GB. You’ll only need 32GB if you edit video in DaVinci Resolve or Premiere Pro, run virtual machines, or stream while gaming with OBS running in the background.
#Should I enable XMP or DOCP for my RAM?
Always. Without it, your RAM defaults to 2133MHz regardless of its rated speed. On AMD B550 and X570 boards, the setting is called DOCP (or A-XMP on some ASUS boards). Go to BIOS, find it under the memory or overclocking section, and enable it. The whole process takes under a minute.
#Can I mix different RAM brands with the Ryzen 5 5600X?
You can, but don’t. Mismatched sticks often use different memory chips and timings, which forces both sticks to run at the slower kit’s speed. Worse, some combinations won’t POST at all. Buy a matched kit from one manufacturer to avoid headaches.
#What’s the difference between CL16 and CL18 RAM?
At 3600MHz, CL16 has a true latency of about 8.89ns while CL18 is roughly 10ns. That translates to 3-5% better performance in memory-sensitive games and applications. CL16 kits typically cost $10-20 more. Worth it for competitive gaming, not critical for casual use at 1440p or higher.
#Does RGB RAM affect performance?
No. RGB lighting draws a tiny amount of power from the motherboard’s USB header or 12V rail, but it has zero effect on memory speed, latency, or system performance. RGB kits cost $10-15 more than identical non-RGB versions. The only functional downside is slightly taller heat spreaders on some RGB kits, which can interfere with large air coolers.
#Is DDR4 still worth buying in 2026?
If you already own a Ryzen 5 5600X and an AM4 motherboard, yes. Switching to DDR5 means buying a new CPU, motherboard, and RAM, which costs $400+ minimum. But for a brand-new build from scratch, consider Ryzen 7000 series with DDR5 since DDR4 prices have risen sharply and supply is limited.
#Why is DDR4 getting more expensive?
Memory manufacturers like Micron and Samsung have shifted production capacity to DDR5 and HBM chips for AI servers. DDR4 production is winding down, creating a supply shortage. Prices have risen 150-200% since early 2025, and industry analysts expect shortages to continue through at least Q4 2027.
